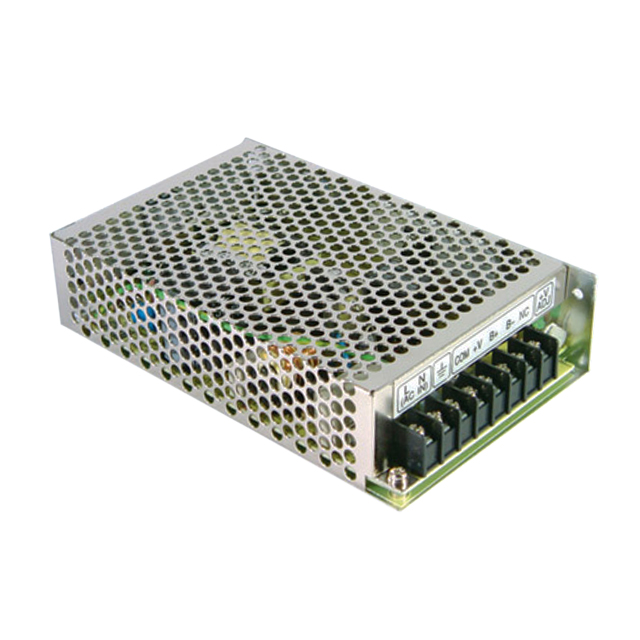

AD-55A

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 13.8V 13.4V 51W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 13.8V 13.4V 51W

Technical Specifications

Parameters and characteristics for this part

Specification	AD-55A

Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Current - Output 1	3.5 A
Current - Output 2	230 mA
Efficiency	71 %
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	51 W
Size / Dimension [x]	6.26 in
Size / Dimension [x]	159 mm
Size / Dimension [y]	97 mm
Size / Dimension [y]	3.82 in
Size / Dimension [z]	1.5 "
Size / Dimension [z]	38 mm
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	88 VAC, 124 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	13.8 V
Voltage - Output 2	13.4 V

AC/DC CONVERTER 13.8V 13.4V 51W

Part	Current - Output 1	Voltage - Isolation	Efficiency	Current - Output 2	Type	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Features	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Mounting Type	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Power (Watts)	Voltage - Output 2
MEAN WELL USA Inc. AD-55A	3.5 A	3000 V	71 %	230 mA	Enclosed	ITE (Commercial)	97 mm	1.5 "	6.26 in	38 mm	159 mm	3.82 in	Adjustable Output, Universal Input	13.8 V	-10 °C	60 °C	CB, CE, cURus, TUV	Chassis Mount	88 VAC, 124 VDC	264 VAC, 370 VDC	2	51 W	13.4 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 2 Output 13.8V 13.4V 88 ~ 264 VAC, 124 ~ 370 VDC Input
