HPC 4012BMV-220M

Active

TAI-TECH Advanced Electronics Co., Ltd.

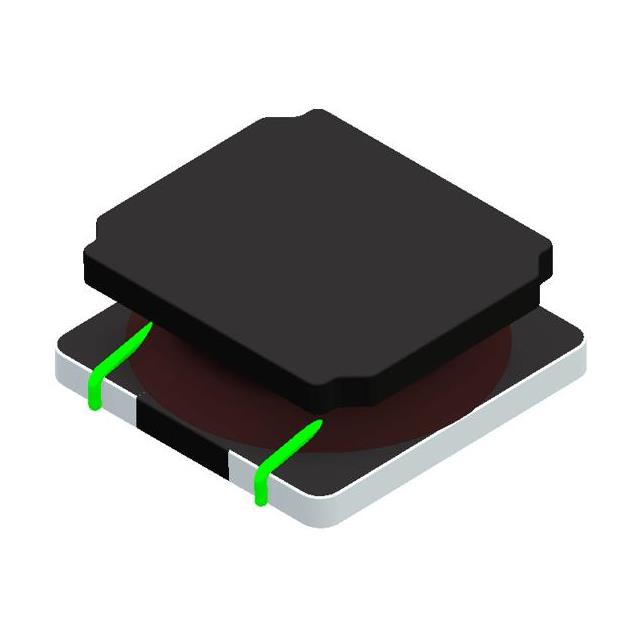

FIXED IND 22UH 900MA 0.564OHM SM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HPC 4012BMV-220M

Active

TAI-TECH Advanced Electronics Co., Ltd.

FIXED IND 22UH 900MA 0.564OHM SM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HPC 4012BMV-220M	HPC 4012BMV Series

Current - Saturation (Isat)	600 mA	1.4 - 900 mA
Current Rating (Amps)	900 mA	1.2 - 900 mA
DC Resistance (DCR)	-	1.02 - 276 Ohm
DC Resistance (DCR) [Max]	564 mOhm	79.2 - 564 mOhm
Height - Seated (Max) [Max]	1.2 mm	1.2 mm
Height - Seated (Max) [Max]	0.047 in	0.047 in
Inductance	22 µH	1 - 33 µH
Inductance Frequency - Test	100 kHz	100 kHz
Material - Core	Ferrite	Ferrite
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	1616 (4040 Metric)	1616 (4040 Metric)
Ratings	AEC-Q200	AEC-Q200
Shielding	Shielded	Shielded
Size / Dimension [x]	4 mm	4 mm
Size / Dimension [x]	0.157 "	0.157 "
Size / Dimension [y]	0.157 in	0.157 in
Size / Dimension [y]	4 mm	4 mm
Supplier Device Package	4012	4012
Tolerance	20 %	20 %
Type	Wirewound	Wirewound

HPC 4012BMV Series

FIXED IND 22UH 900MA 0.564OHM SM

Part	Shielding	Inductance	Supplier Device Package	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR) [Max]	Material - Core	Current - Saturation (Isat)	Package / Case	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Inductance Frequency - Test	Ratings	Current Rating (Amps)	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR)
TAI-TECH Advanced Electronics Co., Ltd. HPC 4012BMV-220M	Shielded	22 µH	4012	20 %	-55 °C	125 °C	564 mOhm	Ferrite	600 mA	1616 (4040 Metric)	Surface Mount	0.157 in	4 mm	4 mm	0.157 "	100 kHz	AEC-Q200	900 mA	Wirewound	1.2 mm	0.047 in
TAI-TECH Advanced Electronics Co., Ltd. HPC 4012BMV-1R0M	Shielded	1 µH	4012	20 %	-55 °C	125 °C		Ferrite	3.6 A	1616 (4040 Metric)	Surface Mount	0.157 in	4 mm	4 mm	0.157 "	100 kHz	AEC-Q200	4.2 A	Wirewound	1.2 mm	0.047 in
TAI-TECH Advanced Electronics Co., Ltd. HPC 4012BMV-330M	Shielded	33 µH	4012	20 %	-55 °C	125 °C		Ferrite	550 mA	1616 (4040 Metric)	Surface Mount	0.157 in	4 mm	4 mm	0.157 "	100 kHz	AEC-Q200	700 mA	Wirewound	1.2 mm	0.047 in	1.02 Ohm
TAI-TECH Advanced Electronics Co., Ltd. HPC 4012BMV-100M	Shielded	10 µH	4012	20 %	-55 °C	125 °C		Ferrite	900 mA	1616 (4040 Metric)	Surface Mount	0.157 in	4 mm	4 mm	0.157 "	100 kHz	AEC-Q200	1.2 A	Wirewound	1.2 mm	0.047 in	276 mOhm
TAI-TECH Advanced Electronics Co., Ltd. HPC 4012BMV-2R2M	Shielded	2.2 µH	4012	20 %	-55 °C	125 °C	79.2 mOhm	Ferrite	2.3 A	1616 (4040 Metric)	Surface Mount	0.157 in	4 mm	4 mm	0.157 "	100 kHz	AEC-Q200	3 A	Wirewound	1.2 mm	0.047 in
TAI-TECH Advanced Electronics Co., Ltd. HPC 4012BMV-4R7M	Shielded	4.7 ÁH	4012	20 %	-55 °C	125 °C	134 mOhm	Ferrite	1.4 A	1616 (4040 Metric)	Surface Mount	0.157 in	4 mm	4 mm	0.157 "	100 kHz	AEC-Q200		Wirewound	1.2 mm	0.047 in
