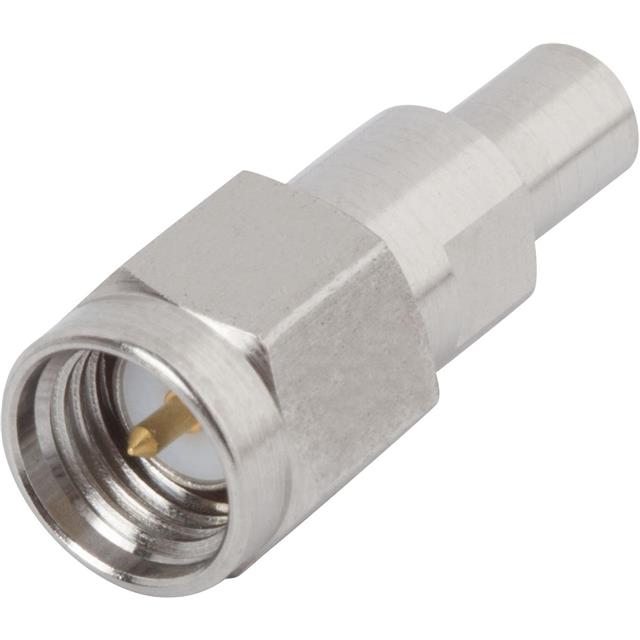

SF1129-6153

Active

Amphenol SV Microwave

CONN SMA-SMP ADAPTER 0HZ TO 18GHZ 50OHM ST M/M GOLD OVER NICKEL TRAY

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN SMA-SMP ADAPTER 0HZ TO 18GHZ 50OHM ST M/M GOLD OVER NICKEL TRAY

Technical Specifications

Parameters and characteristics for this part

Specification	SF1129-6153

Adapter Series	SMA to SMP
Adapter Type	Plug to Plug
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	SMA Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Features	Full Detent
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Center Gender	Fastening Type	Mounting Type	Center Contact Material	Convert From (Adapter End)	Center Contact Plating	Features	Adapter Type	Adapter Series	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Frequency - Max [Max]	Body Material	Style	Conversion Type	Mating Cycles	Dielectric Material
Amphenol SV Microwave SF1129-6153	Male to Male	Snap-On Threaded	Free Hanging (In-Line)	Beryllium Copper	SMA Plug Male Pin	Gold	Full Detent	Plug to Plug	SMA to SMP	-65 ░C	165 °C	50 Ohms	18 GHz	Stainless Steel	Straight	Between Series	500	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Plug, Male Pin To SMP Plug, Male Pin 50 Ohms
