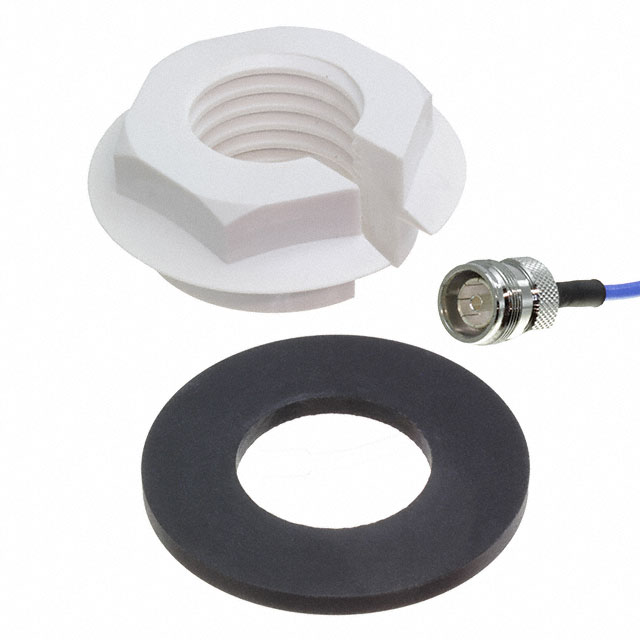

CFS69383P-30D43F

Active

TE Connectivity Raychem Cable Protection

ANT OMNI DBAND 30CM DINF

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

ANT OMNI DBAND 30CM DINF

Technical Specifications

Parameters and characteristics for this part

Specification	CFS69383P-30D43F

Antenna Type	Flat Panel
Applications	LTE, UMTS, WiMax™, GSM, AWS, DCS
Features	300 mm
Features	Cable
Frequency (Center/Band)	1.45 GHz, 1.92 GHz, 2.04 GHz, 3.55 GHz, 2.4 GHz, 920 MHz, 1.785 GHz, 859 MHz, 2.6 GHz, 752 MHz
Frequency Group	Wide Band
Frequency Range [Max]	3.8 GHz, 1550 MHz, 960 MHz
Frequency Range [Min]	1.35 GHz, 1.69 GHz, 698 MHz
Gain	5.4 dBi, 3.5 dBi, 3.9 dBi, 4.8 dBi, 4.9 dBi, 4.4 dBi
Height (Max) [Max]	7.62 mm
Height (Max) [Max]	0.3 "
Number of Bands	10
Power - Max [Max]	50 W
RF Family/Standard	Cellular, WiFi
Termination	4.3/10 - Female
VSWR [Max]	2
VSWR [Min]	1.8

Part	Antenna Type	Frequency Group	Features	Features	Power - Max [Max]	VSWR [Min]	VSWR [Max]	Height (Max) [Max]	Height (Max) [Max]	Termination	Frequency Range [Min]	Frequency Range [Max]	Frequency (Center/Band)	Applications	RF Family/Standard	Gain	Number of Bands
TE Connectivity Raychem Cable Protection CFS69383P-30D43F	Flat Panel	Wide Band	300 mm	Cable	50 W	1.8	2	7.62 mm	0.3 "	4.3/10 - Female	1.35 GHz 1.69 GHz 698 MHz	3.8 GHz 960 MHz 1550 MHz	1.45 GHz 1.785 GHz 1.92 GHz 2.04 GHz 2.4 GHz 2.6 GHz 3.55 GHz 752 MHz 859 MHz 920 MHz	AWS DCS GSM LTE UMTS WiMax™	Cellular WiFi	3.5 dBi 3.9 dBi 4.4 dBi 4.8 dBi 4.9 dBi 5.4 dBi	10
TE Connectivity Raychem Cable Protection CFS69383P-30NF	Flat Panel	Wide Band	300 mm	Cable	50 W	1.8	2	7.62 mm	0.3 "	N Type Female	1.35 GHz 1.69 GHz 698 MHz	3.8 GHz 960 MHz 1550 MHz	1.45 GHz 1.785 GHz 1.92 GHz 2.04 GHz 2.4 GHz 2.6 GHz 3.55 GHz 752 MHz 859 MHz 920 MHz	AWS DCS GSM LTE UMTS WiMax™	Cellular WiFi	3.5 dBi 3.9 dBi 4.4 dBi 4.8 dBi 4.9 dBi 5.4 dBi	10
