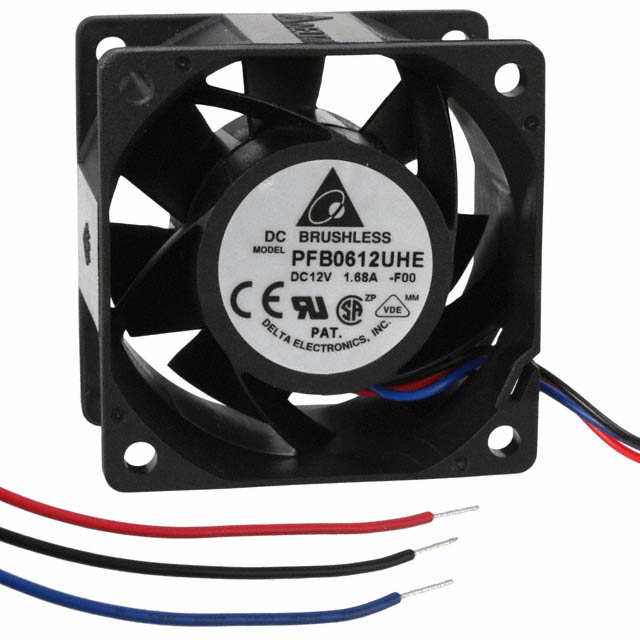

Specification	PFB0612UHE-F00

Air Flow	67.8 CFM
Approval Agency	CSA, UL, CE, VDE
Bearing Type	Ball
Current Rating	1.4 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, Speed Sensor (Tach)
Lifetime	50000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	61.5 dB
Operating Temperature (Max)	140 °F
Operating Temperature (Min)	14 °F
Power (Watts)	16.8 W
RPM	12000 RPM
Size / Dimension Height	60 mm
Size / Dimension Length	60 mm
Size / Dimension Shape	Square
Static Pressure	2.129 in H2O
Termination	3 Wire Leads
Termination Leads Count	3
Termination Type	Wire Leads
Voltage - Rated	12 VAC
Voltage Range (Max)	13.2 VDC
Voltage Range (Min)	7 V
Weight	0.287 lb
Width	38 mm

PFB0612 Series

Part	Features	Weight	Fan Type	Voltage - Rated	Approval Agency	Termination Leads Count	Termination Type	Termination	Width	Bearing Type	Air Flow	Size / Dimension Height	Size / Dimension Shape	Size / Dimension Length	RPM	Power (Watts)	Operating Temperature (Max)	Operating Temperature (Min)	Static Pressure	Noise	Voltage Range (Min)	Voltage Range (Max)	Current Rating	Lifetime	Material - Frame	Material - Blade	Ingress Protection Description	Ingress Protection IP Rating
Delta Electronics PFB0612GHE-R00	Locked Rotor Sensor	0.287 lb	Tubeaxial	12 VAC	CE CSA UL VDE	3	Wire Leads	3 Wire Leads	38 mm	Ball	55.6 CFM	60 mm	Square	60 mm	10000 RPM	10.2 W	140 °F	14 °F	1.444 in H2O	57.5 dB	7 V	13.2 VDC	0.85 A	50000 Hrs	Plastic	Plastic
Delta Electronics PFB0612GHE	Locked Rotor Protection	0.287 lb	Tubeaxial	12 VAC	CE CSA UL VDE	2 leads	Wire Leads	2 Wire Leads	38 mm	Ball	55.6 CFM	60 mm	Square	60 mm	10000 RPM	10.2 W	140 °F	14 °F	1.444 in H2O	57.5 dB	7 V	13.2 VDC	0.85 A	50000 Hrs	Plastic	Plastic
Delta Electronics PFB0612GHE-T500	Locked Rotor Protection	0.287 lb	Tubeaxial	12 VAC	CE CSA UL VDE	2 leads	Wire Leads	2 Wire Leads	38 mm	Ball	55.6 CFM	60 mm	Square	60 mm	10000 RPM	10.2 W	140 °F	14 °F	1.444 in H2O	57.5 dB	7 V	13.2 VDC	0.85 A	50000 Hrs	Plastic	Plastic	Dust Protected Water Resistant	IP55
Delta Electronics PFB0612UHE-T50F	Locked Rotor Protection Speed Sensor (Tach)	0.287 lb	Tubeaxial	12 VAC	CE CSA UL VDE	3	Wire Leads	3 Wire Leads	38 mm	Ball	67.8 CFM	60 mm	Square	60 mm	12000 RPM	16.8 W	140 °F	14 °F	2.129 in H2O	61.5 dB	7 V	13.2 VDC	1.4 A	50000 Hrs	Plastic	Plastic	Dust Protected Water Resistant	IP55
Delta Electronics PFB0612SHE-R00	Locked Rotor Sensor	0.287 lb	Tubeaxial	12 VAC	CE CSA UL VDE	3	Wire Leads	3 Wire Leads	38 mm	Ball	43.6 CFM	60 mm	Square	60 mm	8000 RPM	5.76 W	140 °F	14 °F	0.918 in H2O	50.5 dB	7 V	13.2 VDC	480 mA	70000 Hrs	Plastic	Plastic
Delta Electronics PFB0612EHE-F00	Locked Rotor Protection Speed Sensor (Tach)	0.287 lb	Tubeaxial	12 VAC	CE CSA UL VDE	3	Wire Leads	3 Wire Leads	38 mm	Ball	50.4 CFM	60 mm	Square	60 mm	9000 RPM	7.56 W	140 °F	14 °F	1.203 in H2O	54 dB	7 V	13.2 VDC	0.63 A	70000 Hrs	Plastic	Plastic
Delta Electronics PFB0612UHE-R00	Locked Rotor Sensor	0.287 lb	Tubeaxial	12 VAC	CE CSA UL VDE	3	Wire Leads	3 Wire Leads	38 mm	Ball	67.8 CFM	60 mm	Square	60 mm	12000 RPM	16.8 W	140 °F	14 °F	2.129 in H2O	61.5 dB	7 V	13.2 VDC	1.4 A	50000 Hrs	Plastic	Plastic
Delta Electronics PFB0612SHE	Locked Rotor Protection	0.287 lb	Tubeaxial	12 VAC	CE CSA UL VDE	2 leads	Wire Leads	2 Wire Leads	38 mm	Ball	43.6 CFM	60 mm	Square	60 mm	8000 RPM	5.76 W	140 °F	14 °F	0.918 in H2O	50.5 dB	7 V	13.2 VDC	480 mA	70000 Hrs	Plastic	Plastic
Delta Electronics PFB0612UHE-F00	Locked Rotor Protection Speed Sensor (Tach)	0.287 lb	Tubeaxial	12 VAC	CE CSA UL VDE	3	Wire Leads	3 Wire Leads	38 mm	Ball	67.8 CFM	60 mm	Square	60 mm	12000 RPM	16.8 W	140 °F	14 °F	2.129 in H2O	61.5 dB	7 V	13.2 VDC	1.4 A	50000 Hrs	Plastic	Plastic
