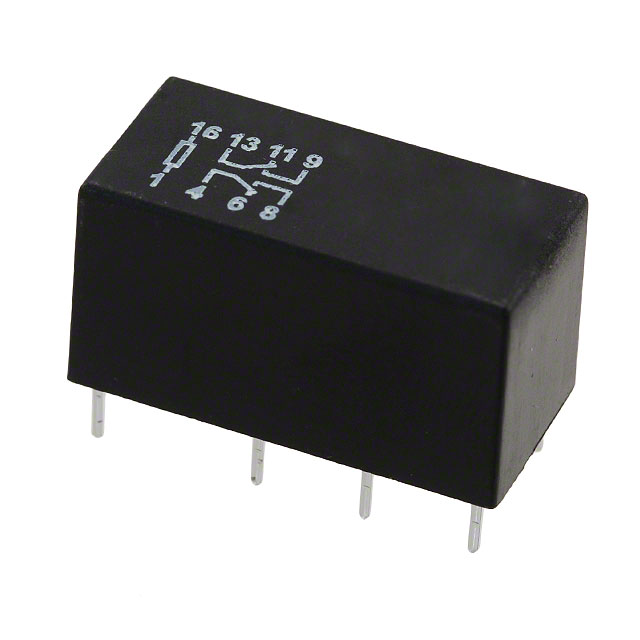

C93423

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY TELECOM DPDT 2A 9V

Deep-Dive with AI

Search across all available documentation for this part.

C93423

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY TELECOM DPDT 2A 9V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C93423

Coil Current	44.4 mA
Coil Resistance	203 Ohms
Coil Type	Non Latching
Coil Voltage	9 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	2 A
Load - Max Switching	440 W, 500 VA
Mounting Type	Through Hole
Must Release Voltage	0.9 VDC
Operate Time	5 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Relay Type	Telecom
Release Time	3 ms
Switching Voltage	250 VAC, 220 VDC
Termination Style	PC Pin

C934 Series

Part	Contact Rating (Current)	Must Release Voltage	Release Time	Termination Style	Coil Type	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Relay Type	Operate Time	Coil Current	Switching Voltage	Contact Form	Load - Max Switching	Coil Voltage	Mounting Type	Coil Resistance	Must Operate Voltage
TE Connectivity Potter & Brumfield Relays C93431	2 A	2.4 VDC	3 ms	PC Pin	Non Latching	Gold (Au) Silver Nickel (AgNi)	85 °C	-55 °C	Telecom	5 ms	23 mA	220 VDC 250 VAC	DPDT (2 Form C)	440 W 500 VA	24 VDC	Through Hole	1.05 kOhms
TE Connectivity Potter & Brumfield Relays C93403	2 A	2.4 VDC	3 ms	PC Pin	Non Latching	Gold (Au) Silver Nickel (AgNi)	85 °C	-55 °C	Telecom	5 ms	6.3 mA	220 VDC 250 VAC	DPDT (2 Form C)	440 W 500 VA	24 VDC	Through Hole	3.87 kOhms	17.1 VDC
TE Connectivity Potter & Brumfield Relays C93432	2 A	1.2 VDC	3 ms	PC Pin	Non Latching	Gold (Au) Silver Nickel (AgNi)	85 °C	-55 °C	Telecom	5 ms	45.8 mA	220 VDC 250 VAC	DPDT (2 Form C)	440 W 500 VA	12 VDC	Through Hole	280 Ohms	7.8 VDC
TE Connectivity Potter & Brumfield Relays C93401	2 A	0.5 VDC	3 ms	PC Pin	Non Latching	Gold (Au) Silver Nickel (AgNi)	85 °C	-55 °C	Telecom	5 ms	30 mA	220 VDC 250 VAC	DPDT (2 Form C)	440 W 500 VA	5 VDC	Through Hole	168 Ohms	3.6 VDC
TE Connectivity Potter & Brumfield Relays C93436	2 A	4.8 VDC	3 ms	PC Pin	Non Latching	Gold (Au) Silver Nickel (AgNi)	85 °C	-55 °C	Telecom	5 ms	6.3 mA	220 VDC 250 VAC	DPDT (2 Form C)	440 W 500 VA	48 VDC	Through Hole	8.24 kOhms	32.5 VDC
TE Connectivity Potter & Brumfield Relays C93423	2 A	0.9 VDC	3 ms	PC Pin	Non Latching	Gold (Au) Silver Nickel (AgNi)	85 °C	-55 °C	Telecom	5 ms	44.4 mA	220 VDC 250 VAC	DPDT (2 Form C)	440 W 500 VA	9 VDC	Through Hole	203 Ohms
TE Connectivity Potter & Brumfield Relays C93450	2 A	0.5 VDC	3 ms	PC Pin	Non Latching	Gold (Au) Silver Nickel (AgNi)	85 °C	-55 °C	Telecom	5 ms	110 mA	220 VDC 250 VAC	DPDT (2 Form C)	440 W 500 VA	5 VDC	Through Hole	45 Ohms	3.3 VDC
TE Connectivity Potter & Brumfield Relays C93419	2 A	2.4 VDC	3 ms	PC Pin	Non Latching	Gold (Au) Silver Nickel (AgNi)	85 °C	-55 °C	Telecom	5 ms	8.3 mA	220 VDC 250 VAC	DPDT (2 Form C)	440 W 500 VA	24 VDC	Through Hole	2.88 kOhms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

C934 Series

Telecom Relay DPDT (2 Form C) Through Hole
