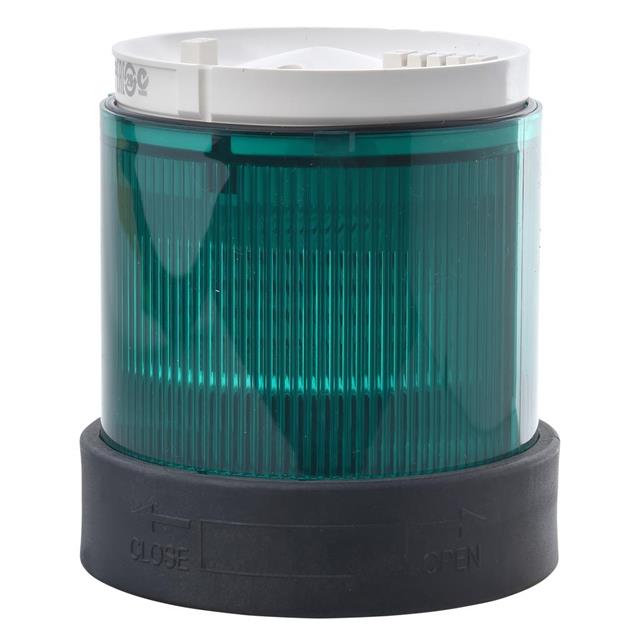

XVBC4M3

Active

SQUARE D BY SCHNEIDER ELECTRIC

BEACON, HARMONY XVB, GREEN, FLASHING, 10W, IP65, 70MM DIA., 63MM EXT. DEPTH

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

BEACON, HARMONY XVB, GREEN, FLASHING, 10W, IP65, 70MM DIA., 63MM EXT. DEPTH

Technical Specifications

Parameters and characteristics for this part

Part	Function - Lighting	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Stacks	Weight	Weight	Type	Light Color	Ingress Protection
SQUARE D BY SCHNEIDER ELECTRIC XVBC4B7	Flashing	50 °C	-25 °C	Screw Terminal	48 V	24 V	1	158.76 g	0.35 lb	Complete Unit	Clear	IP65 IP66
SQUARE D BY SCHNEIDER ELECTRIC XVBC4M3	Flashing	50 °C	-25 °C	Screw Terminal	230 VAC	48 VAC/DC	1	158.76 g	0.35 lb	Complete Unit	Green	IP65 IP66
SQUARE D BY SCHNEIDER ELECTRIC XVBC4M7	Flashing	50 °C	-25 °C	Screw Terminal	230 VAC	48 VAC/DC	1	158.76 g	0.35 lb	Complete Unit	Clear	IP65 IP66

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

The XVBC4M3 is an Indicating Bank Lens with screw clamp terminals. It is made of polycarbonate.
