Q-2I05G0003001M

Active

Amphenol Custom Cable

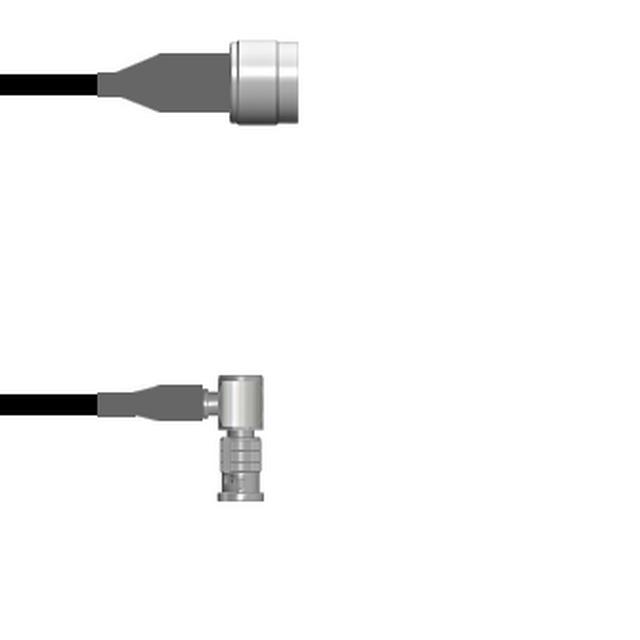

CBL ASSY HDBNC-NTYPE PLG-PL 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2I05G0003001M

Active

Amphenol Custom Cable

CBL ASSY HDBNC-NTYPE PLG-PL 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2I05G0003001M

1st Connector	HD-BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms
Style	HD-BNC to N-Type

Q-2I05G0 Series

Part	Features	Length	Length	Overall Impedance	Color	2nd Connector	1st Connector	1st Contact Gender	Frequency - Max [Max]	2nd Contact Gender	1st Connector Mounting Type	Style	2nd Connector Mounting Type	Cable Type	Length [x]	Length [x]	Length
Amphenol Custom Cable Q-2I05G0005024i	Shielded	24 "	609.6 mm	50 Ohms	Copper	N-Type Plug	HD-BNC Plug Right Angle	Male	6000 MHz	Male	Free Hanging (In-Line)	HD-BNC to N-Type	Free Hanging (In-Line)	RG-316
Amphenol Custom Cable Q-2I05G0005018i	Shielded			50 Ohms	Copper	N-Type Plug	HD-BNC Plug Right Angle	Male	6000 MHz	Male	Free Hanging (In-Line)	HD-BNC to N-Type	Free Hanging (In-Line)	RG-316	457.2 mm	457.2 mm
Amphenol Custom Cable Q-2I05G00052.5M	Shielded	98.4 in	2.5 m	50 Ohms	Copper	N-Type Plug	HD-BNC Plug Right Angle	Male	6000 MHz	Male	Free Hanging (In-Line)	HD-BNC to N-Type	Free Hanging (In-Line)	RG-316			8.2 '
Amphenol Custom Cable Q-2I05G0005108i	Shielded	108 in	2.7 m	50 Ohms	Copper	N-Type Plug	HD-BNC Plug Right Angle	Male	6000 MHz	Male	Free Hanging (In-Line)	HD-BNC to N-Type	Free Hanging (In-Line)	RG-316			9 ft
Amphenol Custom Cable Q-2I05G0005048i	Shielded	48 in	1200 mm	50 Ohms	Copper	N-Type Plug	HD-BNC Plug Right Angle	Male	6000 MHz	Male	Free Hanging (In-Line)	HD-BNC to N-Type	Free Hanging (In-Line)	RG-316			4 ft
Amphenol Custom Cable Q-2I05G0005072i	Shielded	72 in	1.8 m	50 Ohms	Copper	N-Type Plug	HD-BNC Plug Right Angle	Male	6000 MHz	Male	Free Hanging (In-Line)	HD-BNC to N-Type	Free Hanging (In-Line)	RG-316			6 ft
Amphenol Custom Cable Q-2I05G0005084i	Shielded	84 in	2.1 m	50 Ohms	Copper	N-Type Plug	HD-BNC Plug Right Angle	Male	6000 MHz	Male	Free Hanging (In-Line)	HD-BNC to N-Type	Free Hanging (In-Line)	RG-316			7 ft
Amphenol Custom Cable Q-2I05G0005060i	Shielded	5 '	1.5 m	50 Ohms	Copper	N-Type Plug	HD-BNC Plug Right Angle	Male	6000 MHz	Male	Free Hanging (In-Line)	HD-BNC to N-Type	Free Hanging (In-Line)	RG-316			5 ft
Amphenol Custom Cable Q-2I05G0005012i	Shielded	12 "	304.8 mm	50 Ohms	Copper	N-Type Plug	HD-BNC Plug Right Angle	Male	6000 MHz	Male	Free Hanging (In-Line)	HD-BNC to N-Type	Free Hanging (In-Line)	RG-316
Amphenol Custom Cable Q-2I05G0003001M	Shielded	39.4 in	1 m	50 Ohms	Black	N-Type Plug	HD-BNC Plug Right Angle	Male	6000 MHz	Male	Free Hanging (In-Line)	HD-BNC to N-Type	Free Hanging (In-Line)	RG-174			3.3 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 154.84
		25	$ 151.86
		50	$ 148.88
		100	$ 145.90
		250	$ 142.92

Description

General part information

Q-2I05G0 Series

Cable Assembly Coaxial HD-BNC to N-Type RG-174 39.4" (1.0m) 3.3'

Documents

Technical documentation and resources

No documents available
