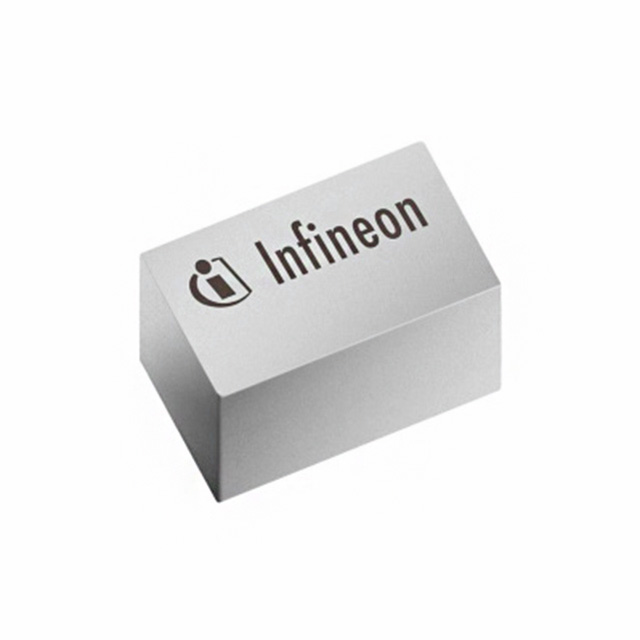

ESD131B1W0201E6327XTSA1 - ESDxxxB1W0201E6327XTSA1

ESD131B1W0201E6327XTSA1

Active
Infineon Technologies

ESD PROTECTION DEVICE, 5.5V, WLL-2-3

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetEnhanced Product Overview EN+2
ESD131B1W0201E6327XTSA1 - ESDxxxB1W0201E6327XTSA1

ESD131B1W0201E6327XTSA1

Active
Infineon Technologies

ESD PROTECTION DEVICE, 5.5V, WLL-2-3

Deep-Dive with AI

DocumentsDatasheetEnhanced Product Overview EN+2

Technical Specifications

Parameters and characteristics for this part

SpecificationESD131B1W0201E6327XTSA1
ApplicationsHDMI, USB
Bidirectional Channels [custom]1
Capacitance @ Frequency0.2 pF
Current - Peak Pulse (10/1000µs)3.5 A
Mounting TypeSurface Mount
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Package / Case0603 Metric
Package / Case0201
Power Line ProtectionFalse
Supplier Device PackageWLL-2-3
TypeZener
Voltage - Breakdown (Min) [Min]6 V
Voltage - Clamping (Max) @ Ipp [Max]13 V
Voltage - Reverse Standoff (Typ)5.5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.26
10$ 0.16
100$ 0.10
500$ 0.07
1000$ 0.06
2000$ 0.06
5000$ 0.05
Digi-Reel® 1$ 0.26
10$ 0.16
100$ 0.10
500$ 0.07
1000$ 0.06
2000$ 0.06
5000$ 0.05
Tape & Reel (TR) 15000$ 0.04
30000$ 0.04
45000$ 0.04
75000$ 0.03
105000$ 0.03
150000$ 0.03
NewarkEach (Supplied on Cut Tape) 1$ 0.19
10$ 0.13
25$ 0.10
50$ 0.08
100$ 0.05
250$ 0.05
500$ 0.05
1000$ 0.05

Description

General part information

ESD131 Series

Low capacitance, low clamping voltage bi-directional ESD / Transient Protection Diode
