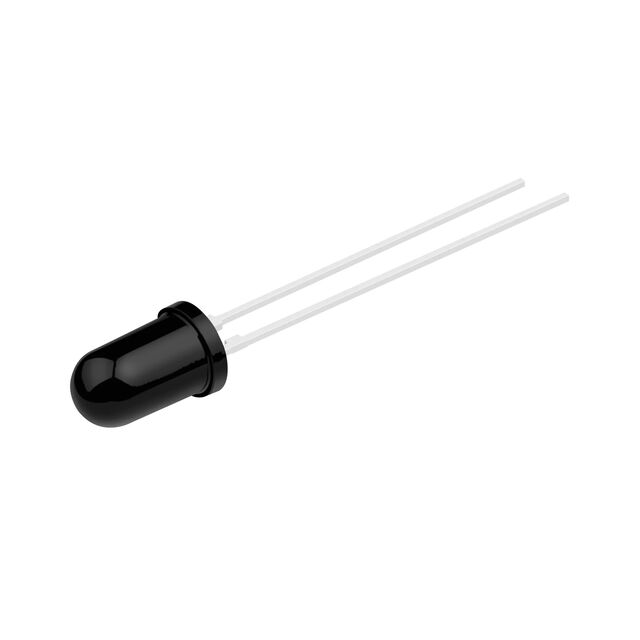

SFH 4556-AW
Activeams-OSRAM USA INC.
RADIAL T1 3/4
SFH 4556-AW
Activeams-OSRAM USA INC.
RADIAL T1 3/4
Description
General part information
SFH4556 Series
Infrared (IR) Emitter 860nm 1.5V 100mA 100mW/sr @ 100mA 40° Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | SFH 4556-AW |
|---|---|
| Current - DC Forward (If) (Max) | 100 mA |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Top View |
| Package / Case | Radial |
| Radiant Intensity (Ie) Min | 100 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 40 ° |
| Voltage - Forward (Vf) (Typ) | 1.5 V |
| Wavelength | 860 nm |
