1182G110

Active

Hammond Manufacturing

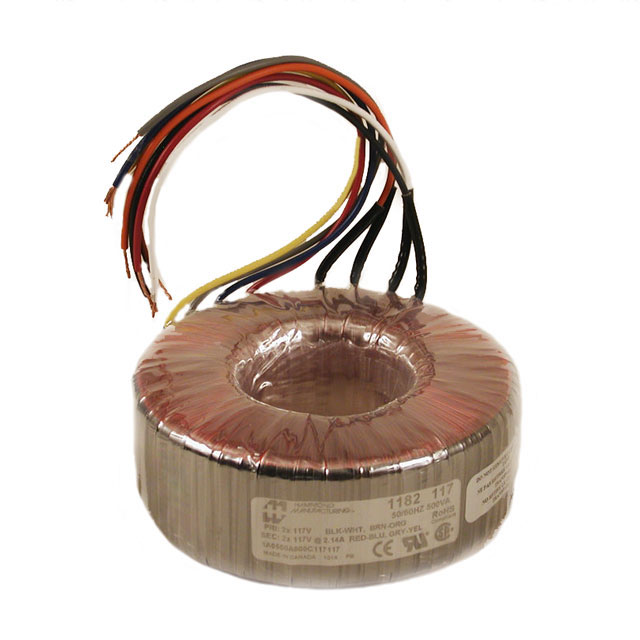

PWR XFMR TOROIDAL 50VA CHAS MT

Deep-Dive with AI

Search across all available documentation for this part.

Documents1182 Series Connection Sheet

1182G110

Active

Hammond Manufacturing

PWR XFMR TOROIDAL 50VA CHAS MT

Deep-Dive with AI

Documents1182 Series Connection Sheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1182G110	1182 Series

Accessory Type	-	Hardware Kit
Center Tap	False	False
Current - Output (Max)	-	1.25 - 2.6 A
Current - Output (Max)	-	1.67 - 41.6 A
Current - Output (Max) [custom]	227 mA	227 mA
Current - Output (Max) [custom]	454 mA	454 mA
For Use With/Related Products	-	1182 Series
Height - Seated (Max) [Max] [z]	38.1 mm	38.1 - 73.15 mm
Mounting Type	Chassis Mount	Chassis Mount
Power - Max [Max]	50 VA	50 - 1000 VA
Primary Winding(s)	Dual	Dual
Secondary Winding(s)	Dual	Single, Dual
Size / Dimension [diameter]	82.55 mm	5 - 158.75 mm
Termination Style	Wire Leads	Wire Leads
Type	Toroidal	Toroidal
Voltage - Isolation	4000 Vrms	4000 Vrms
Voltage - Primary	234 V, 117 V	117 - 234 V
Voltage - Secondary (Full Load)	110 V, 220 V	9 - 240 V
Weight	1.5 lb	1.5 - 17 lbs
Weight	680.4 g	2.7 - 952.5 kg

1182 Series

PWR XFMR TOROIDAL 625VA CHAS MT

Part	Voltage - Secondary (Full Load)	Voltage - Isolation	Type	Height - Seated (Max) [Max] [z]	Current - Output (Max) [Max]	Size / Dimension [diameter]	Power - Max [Max]	Mounting Type	Primary Winding(s)	Termination Style	Secondary Winding(s)	Voltage - Primary	Weight	Weight	Current - Output (Max)	Accessory Type	For Use With/Related Products	Current - Output (Max) [custom]	Current - Output (Max) [custom]
Hammond Manufacturing 1182M240	240 V	4000 Vrms	Toroidal	60.45 mm	2.6 A	152.4 mm	625 VA	Chassis Mount	Dual	Wire Leads	Single	117 V, 234 V	11 lbs	5 kg
Hammond Manufacturing 1182V24	24 V, 48 V	4000 Vrms	Toroidal	73.15 mm		158.75 mm	1000 VA	Chassis Mount	Dual	Wire Leads	Dual	117 V, 234 V	17 lbs	7.7 kg	20.8 A, 41.6 A
Hammond Manufacturing 1182KIT160																Hardware Kit	1182 Series
Hammond Manufacturing 1182K240	240 V	4000 Vrms	Toroidal	47.75 mm	1.25 A	5 in	300 VA	Chassis Mount	Dual	Wire Leads	Single	117 V, 234 V	6 lbs	2.7 kg
Hammond Manufacturing 1182K15	15 V, 30 V	4000 Vrms	Toroidal	38.1 mm		82.55 mm	50 VA	Chassis Mount	Dual	Wire Leads	Dual	117 V, 234 V	1.5 lb	680.4 g	1.67 A, 3.34 A
Hammond Manufacturing 1182Q60	60 V, 120 V	4000 Vrms	Toroidal	73.15 mm		152.4 mm	750 VA	Chassis Mount	Dual	Wire Leads	Dual	117 V, 234 V	13 lbs	5.9 kg	6.25 A, 12.5 A
Hammond Manufacturing 1182L12	12 V, 24 V	4000 Vrms	Toroidal	38.1 mm		82.55 mm	50 VA	Chassis Mount	Dual	Wire Leads	Dual	117 V, 234 V	1.5 lb	680.4 g	2.08 A, 4.16 A
Hammond Manufacturing 1182G110	110 V, 220 V	4000 Vrms	Toroidal	38.1 mm		82.55 mm	50 VA	Chassis Mount	Dual	Wire Leads	Dual	117 V, 234 V	1.5 lb	680.4 g				227 mA	454 mA
Hammond Manufacturing 1182N9	9 V, 18 V	4000 Vrms	Toroidal	38.1 mm		88.9 mm	80 VA	Chassis Mount	Dual	Wire Leads	Dual	117 V, 234 V	2.1 lb	952.5 g	4.44 A, 8.88 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 67.01
		10	$ 60.23
		25	$ 57.71
		50	$ 55.87
		100	$ 54.08

Description

General part information

1182 Series

PWR XFMR TOROIDAL 50VA CHAS MT

Documents

Technical documentation and resources

1182 Series Connection Sheet

Datasheet
