1182KIT160

Active

Hammond Manufacturing

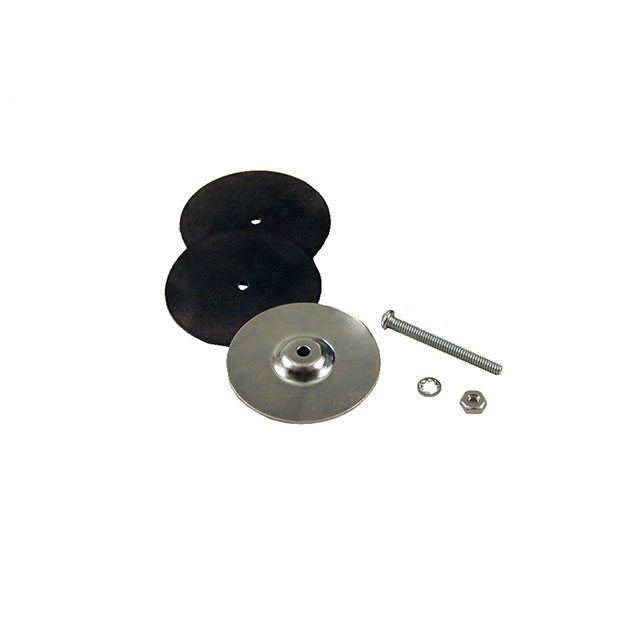

TRANSFORMER TOROID HDWE KIT

Deep-Dive with AI

Search across all available documentation for this part.

Documents1182 Series Connection Sheet

1182KIT160

Active

Hammond Manufacturing

TRANSFORMER TOROID HDWE KIT

Deep-Dive with AI

Documents1182 Series Connection Sheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 10.44
		10	$ 9.42
		25	$ 9.04
		50	$ 8.75
		100	$ 8.48
		250	$ 8.13
		500	$ 7.87
		1000	$ 7.62

Description

General part information

1182 Series

TRANSFORMER TOROID HDWE KIT

Documents

Technical documentation and resources

1182 Series Connection Sheet

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1182KIT160	1182 Series

Accessory Type	Hardware Kit	Hardware Kit
Center Tap	-	False
Current - Output (Max)	-	1.25 - 2.6 A
Current - Output (Max)	-	1.67 - 41.6 A
Current - Output (Max)	-	227 mA
Current - Output (Max)	-	454 mA
For Use With/Related Products	1182 Series	1182 Series
Height - Seated (Max)	-	38.1 - 73.15 mm
Mounting Type	-	Chassis Mount
Power - Max	-	50 - 1000 VA
Primary Winding(s)	-	Dual
Secondary Winding(s)	-	Single, Dual
Size / Dimension	-	5 - 158.75 mm
Termination Style	-	Wire Leads
Type	-	Toroidal
Voltage - Isolation	-	4000 Vrms
Voltage - Primary	-	117 - 234 V
Voltage - Secondary (Full Load)	-	9 - 240 V
Weight	-	1.5 - 17 lbs
Weight	-	2.7 - 952.5 kg

1182 Series

PWR XFMR TOROIDAL 625VA CHAS MT

Part	Voltage - Secondary (Full Load)	Voltage - Isolation	Type	Height - Seated (Max) [Max] [z]	Current - Output (Max) [Max]	Size / Dimension [diameter]	Power - Max [Max]	Mounting Type	Primary Winding(s)	Termination Style	Secondary Winding(s)	Voltage - Primary	Weight	Weight	Current - Output (Max)	Accessory Type	For Use With/Related Products	Current - Output (Max) [custom]	Current - Output (Max) [custom]
Hammond Manufacturing 1182M240	240 V	4000 Vrms	Toroidal	60.45 mm	2.6 A	152.4 mm	625 VA	Chassis Mount	Dual	Wire Leads	Single	117 V, 234 V	11 lbs	5 kg
Hammond Manufacturing 1182V24	24 V, 48 V	4000 Vrms	Toroidal	73.15 mm		158.75 mm	1000 VA	Chassis Mount	Dual	Wire Leads	Dual	117 V, 234 V	17 lbs	7.7 kg	20.8 A, 41.6 A
Hammond Manufacturing 1182KIT160																Hardware Kit	1182 Series
Hammond Manufacturing 1182K240	240 V	4000 Vrms	Toroidal	47.75 mm	1.25 A	5 in	300 VA	Chassis Mount	Dual	Wire Leads	Single	117 V, 234 V	6 lbs	2.7 kg
Hammond Manufacturing 1182K15	15 V, 30 V	4000 Vrms	Toroidal	38.1 mm		82.55 mm	50 VA	Chassis Mount	Dual	Wire Leads	Dual	117 V, 234 V	1.5 lb	680.4 g	1.67 A, 3.34 A
Hammond Manufacturing 1182Q60	60 V, 120 V	4000 Vrms	Toroidal	73.15 mm		152.4 mm	750 VA	Chassis Mount	Dual	Wire Leads	Dual	117 V, 234 V	13 lbs	5.9 kg	6.25 A, 12.5 A
Hammond Manufacturing 1182L12	12 V, 24 V	4000 Vrms	Toroidal	38.1 mm		82.55 mm	50 VA	Chassis Mount	Dual	Wire Leads	Dual	117 V, 234 V	1.5 lb	680.4 g	2.08 A, 4.16 A
Hammond Manufacturing 1182G110	110 V, 220 V	4000 Vrms	Toroidal	38.1 mm		82.55 mm	50 VA	Chassis Mount	Dual	Wire Leads	Dual	117 V, 234 V	1.5 lb	680.4 g				227 mA	454 mA
Hammond Manufacturing 1182N9	9 V, 18 V	4000 Vrms	Toroidal	38.1 mm		88.9 mm	80 VA	Chassis Mount	Dual	Wire Leads	Dual	117 V, 234 V	2.1 lb	952.5 g	4.44 A, 8.88 A
