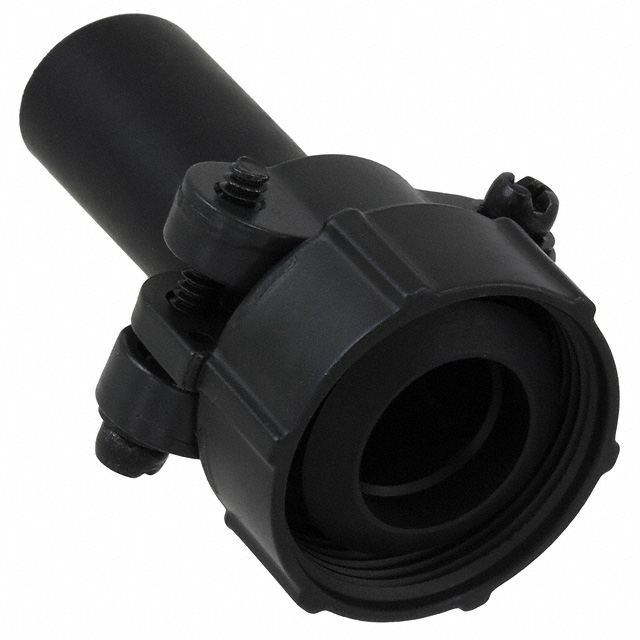

JL04-18CK(13)-R
ActiveJAE Electronics
CONN CABLE CLAMP SZ18 BLK 1-20
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JL04-18CK(13)-R |
|---|---|
| Cable Exit | 180 ° |
| Cable Opening [custom] | 14.1 mm |
| Cable Opening [custom] | 0.555 in |
| Color | Black |
| Diameter - Outside [diameter] | 30.2 mm |
| Diameter - Outside [diameter] | 1.189 " |
| Features | Washers, Bushing, Clamp Screws |
| For Use With/Related Products | JL04V Series Connectors |
| Includes | 2 Screws, 3 Washers, 3 pc Cable Clamp, 1 Bushing |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material | Aluminum Alloy |
| Plating | Zinc |
| Shell Size - Insert | 18 |
| Thread Size | 1-20 UNEF-2B |
| Type | Cable Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 12.38 | |
| 10 | $ 10.97 | |||
| 25 | $ 10.55 | |||
| 50 | $ 10.13 | |||
| 100 | $ 9.56 | |||
| 250 | $ 8.72 | |||
| 500 | $ 8.16 | |||
| 1000 | $ 7.48 | |||
Description
General part information
JL04-18C Series
Black Connector Cable Clamp 1-20 UNEF-2B 18
