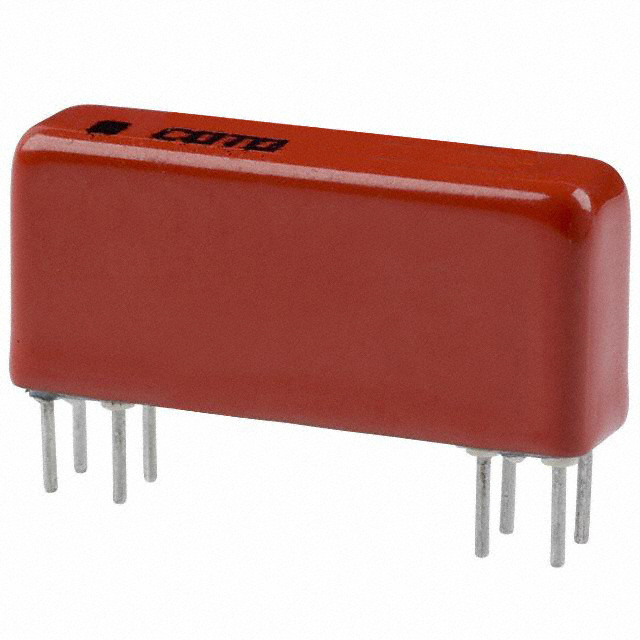

2332-12-020

Active

Coto Technology

RELAY RF DPST-NO 500MA 12V

Search across all available documentation for this part.

Active

Coto Technology

RELAY RF DPST-NO 500MA 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY RF DPST-NO 500MA 12V

Part	Must Operate Voltage	Contact Form	Contact Rating (Current)	Coil Current	Must Release Voltage	Termination Style	Switching Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Operate Time	Features	Coil Type	Release Time	Coil Voltage	Coil Resistance	Seal Rating
Coto Technology 2332-12-020	9 VDC	DPST-NO (2 Form A)	0.5 A	12 mA	1 VDC	PC Pin	200 VDC, 200 VAC	85 °C	-20 C	Through Hole	500 µs	Sealed - Hermetically	Non Latching	0.15 ms	12 VDC	1 kOhms
Coto Technology 2332-12-010	9 VDC	DPST-NO (2 Form A)	0.5 A	12 mA	1 VDC	PC Pin	200 VDC, 200 VAC	85 °C	-20 C	Through Hole	500 µs		Non Latching	0.15 ms	12 VDC	1 kOhms	Sealed - Hermetically
Coto Technology 2332-05-000	3.8 VDC	DPST-NO (2 Form A)	0.5 A	28.6 mA	0.4 VDC	PC Pin	200 VDC, 200 VAC	85 °C	-20 C	Through Hole	500 µs		Non Latching	0.15 ms	5 VDC	175 Ohms	Sealed - Hermetically
Coto Technology 2332-05-010	3.8 VDC	DPST-NO (2 Form A)	0.5 A	28.6 mA	0.4 VDC	PC Pin	200 VDC, 200 VAC	85 °C	-20 C	Through Hole	500 µs		Non Latching	0.15 ms	5 VDC	175 Ohms	Sealed - Hermetically
Coto Technology 2332-12-000	9 VDC	DPST-NO (2 Form A)	0.5 A	12 mA	1 VDC	PC Pin	200 VDC, 200 VAC	85 °C	-20 C	Through Hole	500 µs		Non Latching	0.15 ms	12 VDC	1 kOhms	Sealed - Hermetically
Coto Technology 2332-05-020	3.8 VDC	DPST-NO (2 Form A)	0.5 A	28.6 mA	0.4 VDC	PC Pin	200 VDC, 200 VAC	85 °C	-20 C	Through Hole	500 µs	Sealed - Hermetically	Non Latching	0.15 ms	5 VDC	175 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	400	$ 11.90

General part information

RELAY RF DPST-NO 500MA 12V

Technical documentation and resources
