S8411-45R
ActiveHarwin Inc.
BATTERY HOLDER, COIN CELL - 20MM X 1, PCB
S8411-45R
ActiveHarwin Inc.
BATTERY HOLDER, COIN CELL - 20MM X 1, PCB
Description
General part information
S8411-4 Series

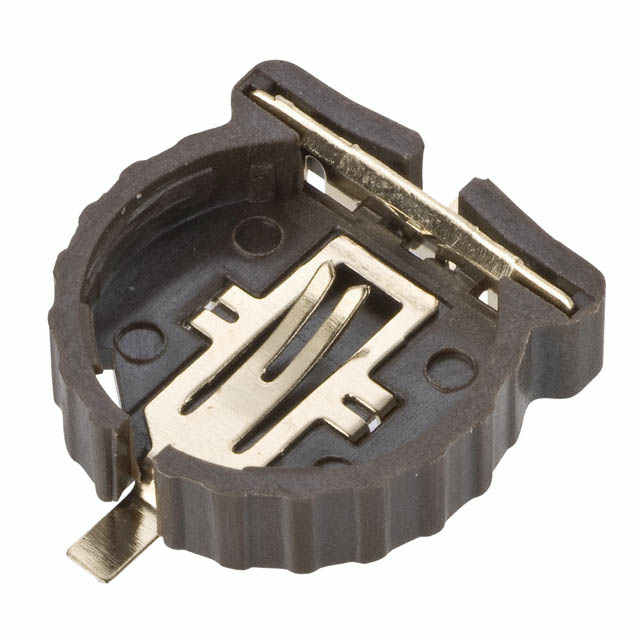

The S8411-45R is a surface mount Coin-cell Battery Holder/Retainer with PPS housing and phosphor bronze contact base with gold-plated finish. Low profile design available with dual independent contact points for enhanced electrical reliability.
Technical Specifications
Parameters and characteristics for this part
| Specification | S8411-45R |
|---|---|
| Battery Cell Size | Coin |
| Battery Cell Size Dimension | 12 mm |
| Battery Series | 1220 |
| Battery Type | Coin Cell |
| Function | Holder |
| Height Above Board | 0.167 in |
| Mounting Type | Surface Mount, PCB |
| Number of Cells | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Style | Holder (Open) |
| Termination Style | SMD (SMT) Tab |
