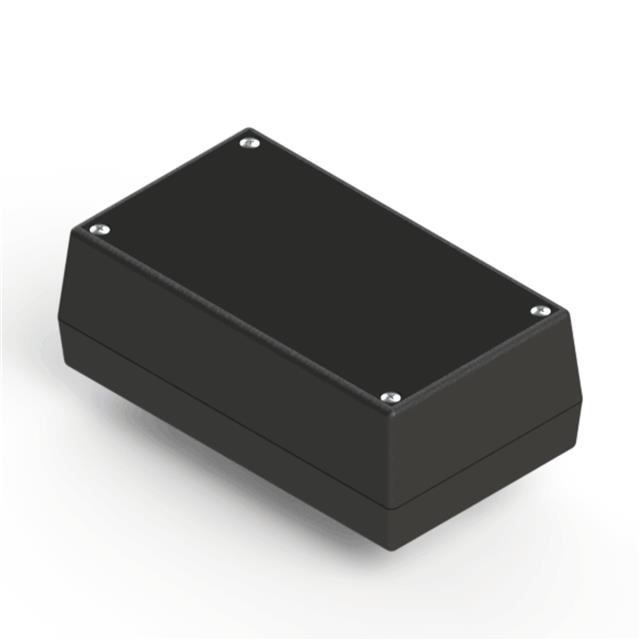

Specification	152RI,BK

Area (L x W)	18.3 in²
Color	Black
Container Type	Box
Design	Split Sides, Hand Held
Features	PCB Supports, Front Access
Height	2 in
Material	ABS, Plastic
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension Length	5.62 in
Size / Dimension Width	3.25 in
Thickness	0.1 in
Weight	0.263 lb

152R Series

Part	Weight	Height	Thickness	Ratings	Size / Dimension Width	Size / Dimension Length	Color	Material	Container Type	Area (L x W)	Material Flammability Rating	Features	Design
Serpac 152RI,AL	0.263 lb	2 in	0.1 in	IP40 NEMA 1	3.25 in	5.62 in	Almond	ABS Plastic	Box	18.3 in²	UL94 HB	Front Access PCB Supports	Hand Held Split Sides
Serpac 152R,AL	0.263 lb	2 in	0.1 in	IP40 NEMA 1	3.25 in	5.62 in	Almond	ABS Plastic	Box	18.3 in²	UL94 HB	Front Access PCB Supports	Hand Held Split Sides
Serpac 152RC,BK	0.263 lb	2 in	0.1 in	IP40 NEMA 1	3.25 in	5.62 in	Black Clear Cover/Door	Plastic Polycarbonate Polycarbonate (PC)	Box	18.3 in²		Front Access PCB Supports	Hand Held Split Sides
Serpac 152R,BK	0.263 lb	2 in	0.1 in	IP40 NEMA 1	3.25 in	5.62 in	Black	ABS Plastic	Box	18.3 in²	UL94 HB	Front Access PCB Supports	Hand Held Split Sides
Serpac 152RC,GY	0.263 lb	2 in	0.1 in	IP40 NEMA 1	3.25 in	5.62 in	Clear Cover/Door Gray	Plastic Polycarbonate Polycarbonate (PC)	Box	18.3 in²		Front Access PCB Supports	Hand Held Split Sides
Serpac 152RI,BK	0.263 lb	2 in	0.1 in	IP40 NEMA 1	3.25 in	5.62 in	Black	ABS Plastic	Box	18.3 in²	UL94 HB	Front Access PCB Supports	Hand Held Split Sides
Serpac 152R,GY	0.263 lb	2 in	0.1 in	IP40 NEMA 1	3.25 in	5.62 in	Gray	ABS Plastic	Box	18.3 in²	UL94 HB	Front Access PCB Supports	Hand Held Split Sides
Serpac 152RC,AL	0.263 lb	2 in	0.1 in	IP40 NEMA 1	3.25 in	5.62 in	Almond Clear Cover/Door	Plastic Polycarbonate Polycarbonate (PC)	Box	18.3 in²		Front Access PCB Supports	Hand Held Split Sides
