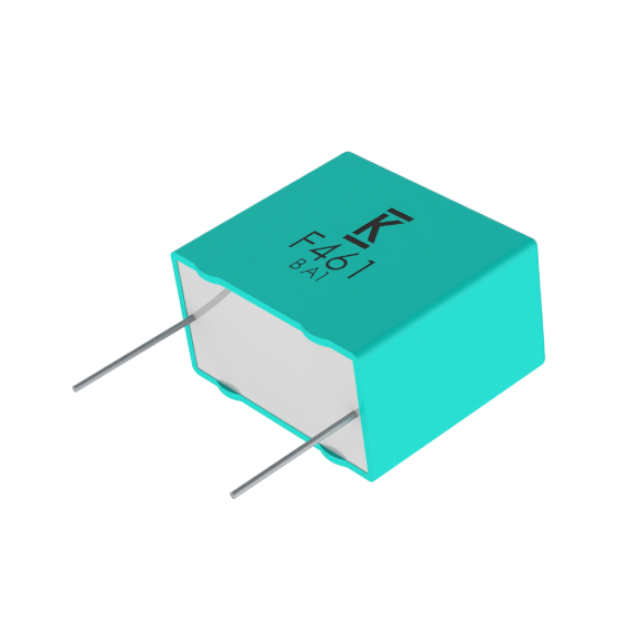

F461KM224J160A

Active

KEMET

CAP, 0.22ΜF, 160V, 5%, PP, RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP, 0.22ΜF, 160V, 5%, PP, RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	F461KM224J160A

Applications	High Pulse, DV/DT
Capacitance	0.22 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max] [z]	12 mm
Height - Seated (Max) [Max] [z]	0.472 "
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	90 V
Voltage Rating - DC	160 V

Part	Voltage Rating - DC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage Rating - AC	Package / Case	Applications	Tolerance	Lead Spacing	Lead Spacing	Termination	Capacitance	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type
KEMET F461KM224J160A	160 V	12 mm	0.472 "	90 V	Radial	DV/DT High Pulse	5 %	7.5 mm	0.295 in	PC Pins	0.22 µF	Metallized Polypropylene (PP)	105 ░C	-55 °C	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.22 µF Film Capacitor 90V 160V Polypropylene (PP), Metallized Radial
