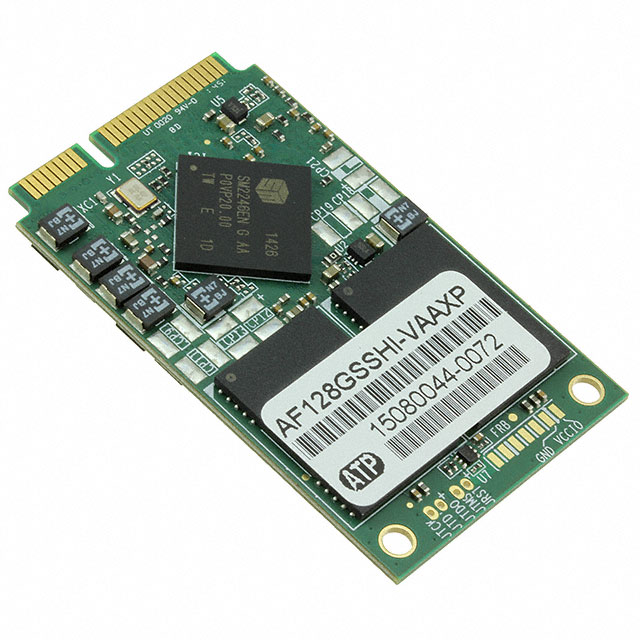

AF128GSSHI-VAAXP

Active

ATP Electronics, Inc.

SSD 128GB MSATA SLC SATA III

Search across all available documentation for this part.

Active

ATP Electronics, Inc.

SSD 128GB MSATA SLC SATA III

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 847.50

General part information

Solid State Drive (SSD) FLASH - NAND (SLC) 128GB SATA III mSATA

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	AF128GSSHI-VAAXP	AF128 Series

Form Factor	mSATA	mSATA, M.2 Module, Slim-SATA
Form Factor	-	1.8 - 2.5 in
Grade	-	Automotive
Memory Format	-	FLASH
Memory Interface	-	eMMC
Memory Organization	-	128 G
Memory Size	128 GB	1 - 128 GB
Memory Type	Solid State Drive (SSD) FLASH - NAND (SLC)	Non-Volatile, Solid State Drive (SSD) FLASH - NAND (SLC), Solid State Drive (SSD) FLASH - NAND (MLC), CFast, microSD™, SD™
Mounting Type	-	Surface Mount
Operating Temperature [Max]	85 °C	70 - 105 °C
Operating Temperature [Min]	-40 °C	-40 - 0 °C
Package / Case	-	153-FBGA
Size / Dimension [x]	2 in	2 - 100 in
Size / Dimension [y]	29.8 mm	22 - 69.9 mm
Size / Dimension [z]	3.7 mm	3.5 - 9.2 mm
Speed	-	Class 10, UHS Class 3
Speed	-	UHS Class 1
Speed - Read	530 MB/s	520 - 530 MB/s
Speed - Write	430 MB/s	390 - 440 MB/s
Supplier Device Package	-	153-BGA
Supplier Device Package	-	13
Supplier Device Package	-	11.5
Technology	-	pSLC, FLASH - NAND (MLC), MLC, TLC, SLC, 3D TLC
Type	SATA III	SATA III

MEM CARD SDXC 128GB CLS 10 PSLC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Speed	Technology	Memory Size	Memory Organization	Memory Format	Memory Interface	Mounting Type	Memory Type	Grade	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]	Package / Case	Form Factor	Type	Speed - Write	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Speed - Read	Speed	Form Factor
ATP Electronics, Inc. AF128GSD4-BBBXM	-25 °C	85 °C	Class 10, UHS Class 3	pSLC	128 GB
ATP Electronics, Inc. AF128GEC5X-2001A3	-40 °C	85 °C		FLASH - NAND (MLC)	1 Mpts	128 G	FLASH	eMMC	Surface Mount	Non-Volatile	Automotive	153-BGA	13	11.5	153-FBGA
ATP Electronics, Inc. AF128GSSHI-VAAXP	-40 °C	85 °C			128 GB					Solid State Drive (SSD) FLASH - NAND (SLC)						mSATA	SATA III	430 MB/s	3.7 mm	2 in	29.8 mm	530 MB/s
ATP Electronics, Inc. AF128GEC5X-2001A2	-40 °C	105 ░C		FLASH - NAND (MLC)	1 Mpts	128 G	FLASH	eMMC	Surface Mount	Non-Volatile	Automotive	153-BGA	13	11.5	153-FBGA
ATP Electronics, Inc. AF128GSD3-WAAXX	-25 °C	85 °C	Class 10	MLC	128 GB																		UHS Class 1
ATP Electronics, Inc. AF128GSMIA-OEM	-40 °C	85 °C			128 GB					Solid State Drive (SSD) FLASH - NAND (MLC)						M.2 Module	SATA III		3.5 mm	42 mm	22 mm
ATP Electronics, Inc. AF128GUD4-BBBXM	-25 °C	85 °C	Class 10, UHS Class 3	TLC	128 GB
ATP Electronics, Inc. AF128GCS-OEM	0 °C	70 °C		MLC	128 GB					CFast
ATP Electronics, Inc. AF128UDI-OEM	-40 °C	85 °C		SLC	128 MB					microSD™
ATP Electronics, Inc. AF128GSMCJ-OEM	-40 °C	85 °C			128 GB					Solid State Drive (SSD) FLASH - NAND (MLC)							SATA III		9.2 mm	100 mm	69.9 mm			2.5 in
