FN258L-250-07

Obsolete

TE Connectivity Raychem Cable Protection

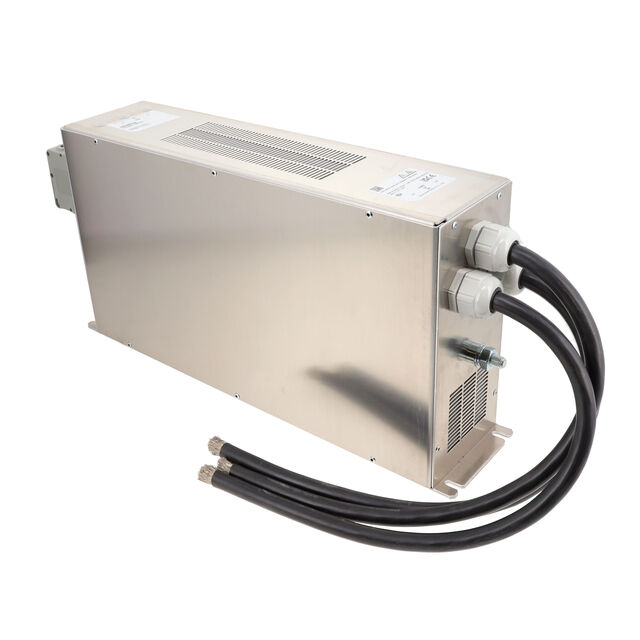

LINE FILTER 250A CHASSIS MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FN258L-250-07

Obsolete

TE Connectivity Raychem Cable Protection

LINE FILTER 250A CHASSIS MOUNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FN258L-250-07

Applications	Power Drive Systems, Inverters
Configuration	Single Stage
Current	250 A
Filter Type	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	DC
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Terminal Block
Voltage - Rated AC (Phase to Phase)	480 V

FN258L Series

Part	Termination Style	Filter Type	Frequency - Operating [Max]	Frequency - Operating [Min]	Operating Temperature [custom]	Approval Agency	Mounting Type	Current	Applications	Configuration	Voltage - Rated AC (Phase to Phase)
TE Connectivity Raychem Cable Protection FN258L-75-34	Terminal Block	Three Phase (Delta)	60 Hz	DC	-25 °C 100 °C	CSA ENEC UR	Chassis Mount	75 A	Inverters Power Drive Systems	Two Stage	480 V
TE Connectivity Raychem Cable Protection FN258L-180-40	Terminal Block	Three Phase (Delta)	60 Hz	DC	-25 °C 100 °C	CSA ENEC UR	Chassis Mount	180 A	Inverters Power Drive Systems	Two Stage	480 V
TE Connectivity Raychem Cable Protection FN258L-55-34	Terminal Block	Three Phase (Delta)	60 Hz	DC	-25 °C 100 °C	CSA ENEC UR	Chassis Mount	55 A	Inverters Power Drive Systems	Two Stage	480 V
TE Connectivity Raychem Cable Protection FN258L-100-35	Terminal Block	Three Phase (Delta)	60 Hz	DC	-25 °C 100 °C	CSA ENEC UR	Chassis Mount	100 A	Inverters Power Drive Systems	Two Stage	480 V
TE Connectivity Raychem Cable Protection FN258L-42-33	Terminal Block	Three Phase (Delta)	60 Hz	DC	-25 °C 100 °C	CSA ENEC UR	Chassis Mount	42 A	Inverters Power Drive Systems	Two Stage	480 V
TE Connectivity Raychem Cable Protection FN258L-55-07	Terminal Block	Three Phase (Delta)	60 Hz	DC	-25 °C 100 °C	CSA ENEC UR	Chassis Mount	55 A	Inverters Power Drive Systems	Two Stage	480 V
TE Connectivity Raychem Cable Protection FN258L-30-33	Terminal Block	Three Phase (Delta)	60 Hz	DC	-25 °C 100 °C	CSA ENEC UR	Chassis Mount	30 A	Inverters Power Drive Systems	Two Stage	480 V
TE Connectivity Raychem Cable Protection FN258L-130-35	Terminal Block	Three Phase (Delta)	60 Hz	DC	-25 °C 100 °C	CSA ENEC UR	Chassis Mount	130 A	Inverters Power Drive Systems	Two Stage	480 V
TE Connectivity Raychem Cable Protection FN258L-7-29	Terminal Block	Three Phase (Delta)	60 Hz	DC	-25 °C 100 °C	CSA ENEC UR	Chassis Mount	7 A	Inverters Power Drive Systems	Two Stage	480 V
TE Connectivity Raychem Cable Protection FN258L-250-07	Terminal Block	Three Phase (Delta)	60 Hz	DC	-25 °C 100 °C		Chassis Mount	250 A	Inverters Power Drive Systems	Single Stage	480 V
