3182-2PG-324
ActiveConxall/Switchcraft

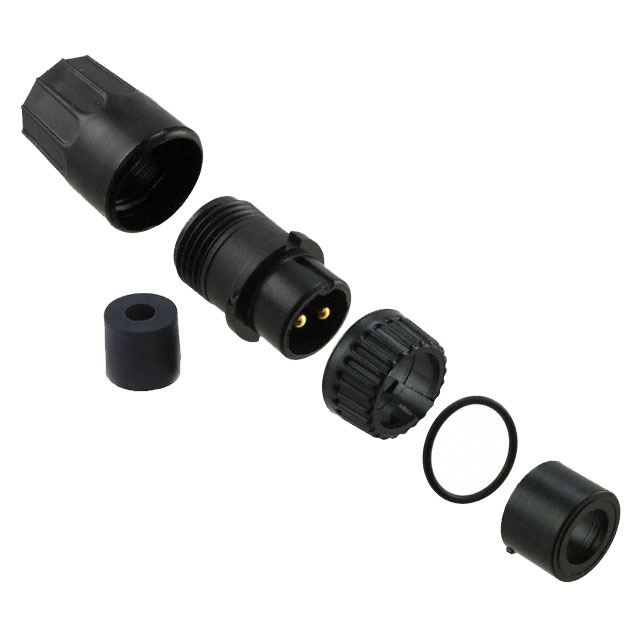

CONN PLUG MALE 2P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3182-2PG-324
ActiveConxall/Switchcraft
CONN PLUG MALE 2P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3182-2PG-324 | 3182-2P Series |
|---|---|---|
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Cable Opening | - | 4.57 mm |
| Cable Opening | - | 0.18 in |
| Cable Opening | - | 0.2 in |
| Cable Opening | - | 5.08 mm |
| Cable Opening | - | 8.13 mm |
| Cable Opening [Max] [diameter] | 6.86 mm | 5.84 - 7.37 mm |
| Cable Opening [Max] [diameter] | 0.27 in | 0.23 - 0.32 in |
| Cable Opening [Min] [diameter] | 0.24 in | 0.21 - 0.3 in |
| Cable Opening [Min] [diameter] | 6.1 mm | 5.33 - 7.62 mm |
| Color | Black | Black |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Backshell, Cable Clamp |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 2 | 2 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 V | 600 V |
3182-2P Series
CONN PLUG MALE 2P GOLD SLDR CUP
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Color | Shielding | Fastening Type | Features | Mounting Type | Contact Material | Connector Type | Backshell Material, Plating | Number of Positions | Ingress Protection | Orientation | Primary Material | Voltage Rating | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 3182-2PG-3DC | -40 °C | 115 °C | Gold | Black | Unshielded | Bayonet Lock | Backshell | Free Hanging (In-Line) | Brass | Male Pins, Plug | Nylon, Polyamide (PA) | 2 | Weathertight | Keyed | Plastic | 600 V | |||||||||
Conxall/Switchcraft 3182-2PG-518 | -40 °C | 115 °C | Gold | Black | Unshielded | Bayonet Lock | Backshell, Cable Clamp | Free Hanging (In-Line) | Brass | Male Pins, Plug | Nylon, Polyamide (PA) | 2 | Weathertight | Keyed | Plastic | 600 V | 4.57 mm | 0.18 in | 0.2 in | 5.08 mm | |||||
Conxall/Switchcraft 3182-2PG-530 | -40 °C | 115 °C | Gold | Black | Unshielded | Bayonet Lock | Backshell, Cable Clamp | Free Hanging (In-Line) | Brass | Male Pins, Plug | Nylon, Polyamide (PA) | 2 | Weathertight | Keyed | Plastic | 600 V | 7.62 mm | 0.32 in | 8.13 mm | 0.3 in | |||||
Conxall/Switchcraft 3182-2PG-324 | -40 °C | 115 °C | Gold | Black | Unshielded | Bayonet Lock | Backshell | Free Hanging (In-Line) | Brass | Male Pins, Plug | Nylon, Polyamide (PA) | 2 | Weathertight | Keyed | Plastic | 600 V | 6.1 mm | 0.27 in | 0.24 in | 6.86 mm | |||||
Conxall/Switchcraft 3182-2PG-521 | -40 °C | 115 °C | Gold | Black | Unshielded | Bayonet Lock | Backshell, Cable Clamp | Free Hanging (In-Line) | Brass | Male Pins, Plug | Nylon, Polyamide (PA) | 2 | Weathertight | Keyed | Plastic | 600 V | 5.33 mm | 0.23 in | 0.21 in | 5.84 mm | |||||
Conxall/Switchcraft 3182-2PG-524 | -40 °C | 115 °C | Gold | Black | Unshielded | Bayonet Lock | Backshell, Cable Clamp | Free Hanging (In-Line) | Brass | Male Pins, Plug | Nylon, Polyamide (PA) | 2 | Weathertight | Keyed | Plastic | 600 V | 6.1 mm | 0.27 in | 0.24 in | 6.86 mm | |||||
Conxall/Switchcraft 3182-2PG-528 | -40 °C | 115 °C | Gold | Black | Unshielded | Bayonet Lock | Backshell, Cable Clamp | Free Hanging (In-Line) | Brass | Male Pins, Plug | Nylon, Polyamide (PA) | 2 | Weathertight | Keyed | Plastic | 600 V | 7.11 mm | 0.29 in | 0.28 in | 7.37 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 8.99 | |
Description
General part information
3182-2P Series
2 Position Circular Connector Plug, Male Pins Solder Cup
