3182-2PG-3DC

Active

Conxall/Switchcraft

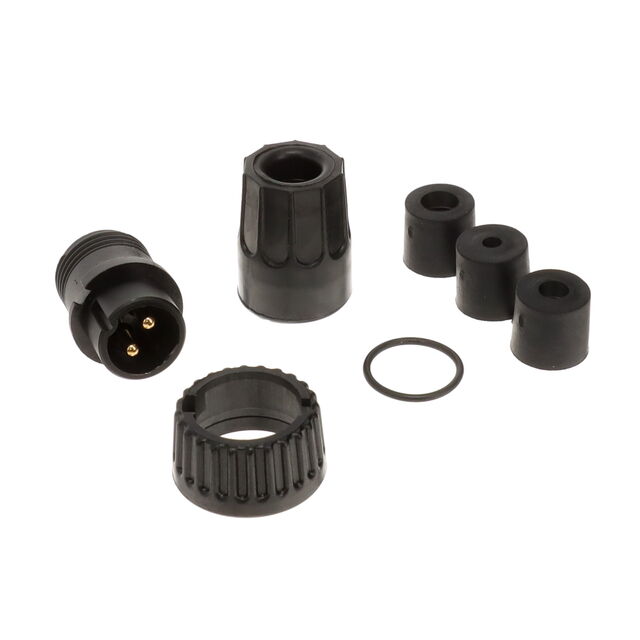

CONN PLUG MALE 2P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3182-2PG-3DC

Active

Conxall/Switchcraft

CONN PLUG MALE 2P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.81
		10	$ 10.88
		25	$ 10.20
		50	$ 9.71
		100	$ 9.25
		250	$ 8.39
		300	$ 8.56
		500	$ 8.26
		1000	$ 7.87

Description

General part information

3182-2P Series

2 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3182-2PG-3DC	3182-2P Series

Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening	-	5.33 - 7.62 mm
Cable Opening	-	0.23 - 0.32 in
Cable Opening	-	8.13 mm
Cable Opening	-	0.21 - 0.3 in
Cable Opening	-	5.84 - 7.37 mm
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell, Cable Clamp
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	2	2
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

3182-2P Series

CONN PLUG MALE 2P GOLD SLDR CUP

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Color	Shielding	Fastening Type	Features	Mounting Type	Contact Material	Connector Type	Backshell Material, Plating	Number of Positions	Ingress Protection	Orientation	Primary Material	Voltage Rating	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 3182-2PG-3DC	-40 °C	115 °C	Gold	Black	Unshielded	Bayonet Lock	Backshell	Free Hanging (In-Line)	Brass	Male Pins, Plug	Nylon, Polyamide (PA)	2	Weathertight	Keyed	Plastic	600 V
Conxall/Switchcraft 3182-2PG-518	-40 °C	115 °C	Gold	Black	Unshielded	Bayonet Lock	Backshell, Cable Clamp	Free Hanging (In-Line)	Brass	Male Pins, Plug	Nylon, Polyamide (PA)	2	Weathertight	Keyed	Plastic	600 V	4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 3182-2PG-530	-40 °C	115 °C	Gold	Black	Unshielded	Bayonet Lock	Backshell, Cable Clamp	Free Hanging (In-Line)	Brass	Male Pins, Plug	Nylon, Polyamide (PA)	2	Weathertight	Keyed	Plastic	600 V					7.62 mm	0.32 in	8.13 mm	0.3 in
Conxall/Switchcraft 3182-2PG-324	-40 °C	115 °C	Gold	Black	Unshielded	Bayonet Lock	Backshell	Free Hanging (In-Line)	Brass	Male Pins, Plug	Nylon, Polyamide (PA)	2	Weathertight	Keyed	Plastic	600 V					6.1 mm	0.27 in		0.24 in	6.86 mm
Conxall/Switchcraft 3182-2PG-521	-40 °C	115 °C	Gold	Black	Unshielded	Bayonet Lock	Backshell, Cable Clamp	Free Hanging (In-Line)	Brass	Male Pins, Plug	Nylon, Polyamide (PA)	2	Weathertight	Keyed	Plastic	600 V					5.33 mm	0.23 in		0.21 in	5.84 mm
Conxall/Switchcraft 3182-2PG-524	-40 °C	115 °C	Gold	Black	Unshielded	Bayonet Lock	Backshell, Cable Clamp	Free Hanging (In-Line)	Brass	Male Pins, Plug	Nylon, Polyamide (PA)	2	Weathertight	Keyed	Plastic	600 V					6.1 mm	0.27 in		0.24 in	6.86 mm
Conxall/Switchcraft 3182-2PG-528	-40 °C	115 °C	Gold	Black	Unshielded	Bayonet Lock	Backshell, Cable Clamp	Free Hanging (In-Line)	Brass	Male Pins, Plug	Nylon, Polyamide (PA)	2	Weathertight	Keyed	Plastic	600 V					7.11 mm	0.29 in		0.28 in	7.37 mm
