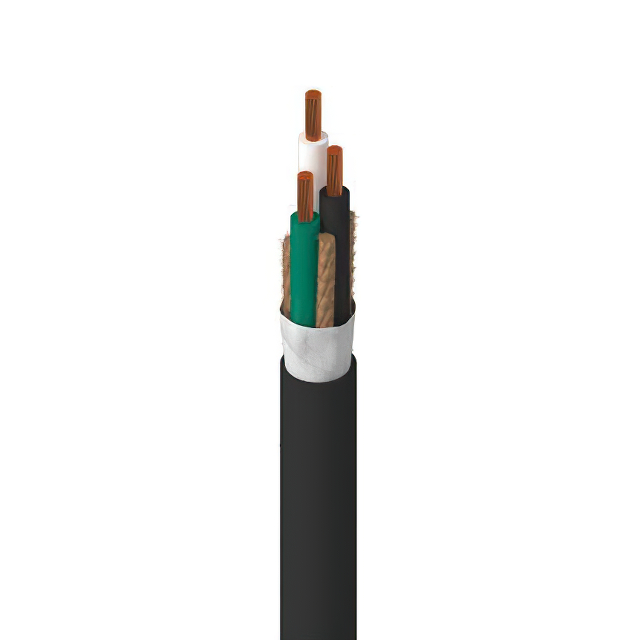

Specification	19229 010250

Cable Type	Conductor, Multi
Conductor Insulation	Ethylene Propylene Terpolymer Rubber (EPDM)
Conductor Material	Copper, Bare
Conductor Strand Count	16
Conductor Strand Gauge	30
Features	Oil Resistant
Jacket (Insulation) Diameter	0.328 in
Jacket (Insulation) Material	Rubber
Jacket (Insulation) Thickness	0.044 in
Jacket Color	Black
Length	250 ft
Number of Conductors	3
Ratings	SJO, UL, Style
Usage	Cord and Cordset
Voltage	300 V
Wire Gauge	18 AWG

19229 Series

Part	Jacket (Insulation) Material	Ratings	Cable Type	Voltage	Length	Number of Conductors	Jacket (Insulation) Diameter	Jacket (Insulation) Thickness	Usage	Wire Gauge	Conductor Insulation	Features	Conductor Strand Gauge	Conductor Strand Count	Conductor Material	Jacket Color
Belden Inc. 19229 010250	Rubber	SJO Style UL	Conductor Multi	300 V	250 ft	3	0.328 in	0.044 in	Cord and Cordset	18 AWG	Ethylene Propylene Terpolymer Rubber (EPDM)	Oil Resistant	30	16	Bare Copper	Black
