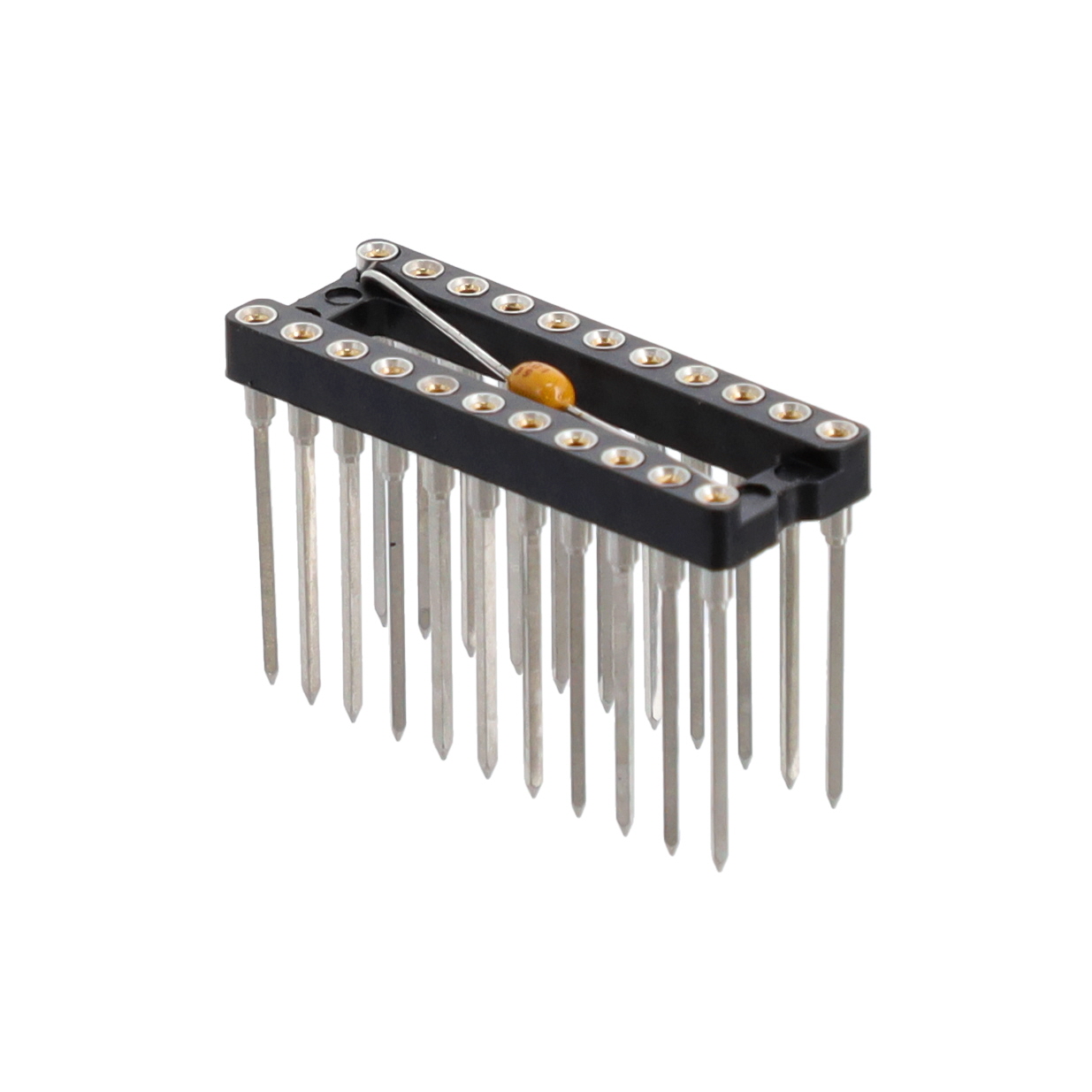

123-43-322-41-801000

Active

Mill-Max Manufacturing Corp.

CONN IC SKT DBL

Deep-Dive with AI

Search across all available documentation for this part.

123-43-322-41-801000

Active

Mill-Max Manufacturing Corp.

CONN IC SKT DBL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	123-43-322-41-801000

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Brass Alloy
Contact Resistance	10 mOhm
Current Rating (Amps)	3 A
Features	Decoupling Capacitor, Open Frame
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	22
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Wire Wrap
Termination Post Length	9.4 mm
Termination Post Length	0.37 in
Type	0.3 "
Type	7.62 mm
Type	DIP

123-43 Series

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination Post Length [x]	Termination Post Length [x]	Contact Material - Post	Current Rating (Amps)	Pitch - Post	Pitch - Post	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Termination	Features	Number of Positions or Pins (Grid)	Contact Material - Mating	Type	Type	Type	Housing Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Resistance	Material Flammability Rating	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Termination Post Length	Termination Post Length	Number of Positions or Pins (Grid) [custom]
Mill-Max Manufacturing Corp. 123-43-628-41-001000	Through Hole	-55 °C	125 °C	200 µin	5.08 µm	0.51 in	12.95 mm	Brass Alloy	3 A	2.54 mm	0.1 in	Gold	0.1 in	2.54 mm	Tin	Wire Wrap	Open Frame	28	Beryllium Copper	DIP	0.6 in	15.24 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 123-43-432-41-001000	Through Hole	-55 °C	125 °C	200 µin	5.08 µm	0.51 in	12.95 mm	Brass Alloy	3 A	2.54 mm	0.1 in	Gold	0.1 in	2.54 mm	Tin	Wire Wrap	Open Frame		Beryllium Copper	DIP	0.4 in	10.16 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30 Áin	0.76 Ám	10 mOhm	UL94 V-0	2 x 16	32
Mill-Max Manufacturing Corp. 123-43-328-41-801000	Through Hole	-55 °C	125 °C	200 µin	5.08 µm			Brass Alloy	3 A	2.54 mm	0.1 in	Gold	0.1 in	2.54 mm	Tin	Wire Wrap	Decoupling Capacitor Open Frame	28	Beryllium Copper	DIP	0.3 "	7.62 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30 Áin	0.76 Ám	10 mOhm				9.4 mm	0.37 in
Mill-Max Manufacturing Corp. 123-43-422-41-001000	Through Hole	-55 °C	125 °C	200 µin	5.08 µm	0.51 in	12.95 mm	Brass Alloy	3 A	2.54 mm	0.1 in	Gold	0.1 in	2.54 mm	Tin	Wire Wrap	Open Frame	22	Beryllium Copper	DIP	0.4 in	10.16 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 123-43-318-41-801000	Through Hole	-55 °C	125 °C	200 µin	5.08 µm	0.51 in	12.95 mm	Brass Alloy	3 A	2.54 mm	0.1 in	Gold	0.1 in	2.54 mm	Tin	Wire Wrap	Decoupling Capacitor Open Frame	18	Beryllium Copper	DIP	0.3 "	7.62 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 123-43-424-41-001000	Through Hole	-55 °C	125 °C	200 µin	5.08 µm	0.51 in	12.95 mm	Brass Alloy	3 A	2.54 mm	0.1 in	Gold	0.1 in	2.54 mm	Tin	Wire Wrap	Open Frame	24	Beryllium Copper	DIP	0.4 in	10.16 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 123-43-304-41-001000	Through Hole	-55 °C	125 °C	200 µin	5.08 µm	0.51 in	12.95 mm	Brass Alloy	3 A	2.54 mm	0.1 in	Gold	0.1 in	2.54 mm	Tin	Wire Wrap	Open Frame		Beryllium Copper	DIP	0.3 "	7.62 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30 Áin	0.76 Ám	10 mOhm	UL94 V-0					4
Mill-Max Manufacturing Corp. 123-43-320-41-001000	Through Hole	-55 °C	125 °C	200 µin	5.08 µm	0.51 in	12.95 mm	Brass Alloy	3 A	2.54 mm	0.1 in	Gold	0.1 in	2.54 mm	Tin	Wire Wrap	Open Frame	20	Beryllium Copper	DIP	0.3 "	7.62 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 123-43-322-41-001000	Through Hole	-55 °C	125 °C	200 µin	5.08 µm	0.51 in	12.95 mm	Brass Alloy	3 A	2.54 mm	0.1 in	Gold	0.1 in	2.54 mm	Tin	Wire Wrap	Open Frame	22	Beryllium Copper	DIP	0.3 "	7.62 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30 Áin	0.76 Ám	10 mOhm	UL94 V-0
Mill-Max Manufacturing Corp. 123-43-322-41-801000	Through Hole	-55 °C	125 °C	200 µin	5.08 µm			Brass Alloy	3 A	2.54 mm	0.1 in	Gold	0.1 in	2.54 mm	Tin	Wire Wrap	Decoupling Capacitor Open Frame	22	Beryllium Copper	DIP	0.3 "	7.62 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30 Áin	0.76 Ám	10 mOhm				9.4 mm	0.37 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 21.45
		18	$ 18.79
		36	$ 17.97
		54	$ 17.39
		108	$ 16.81
		252	$ 15.89
		504	$ 15.42

Description

General part information

123-43 Series

22 (2 x 11) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
