4515-440-SS-20
ActiveRAF Electronic Hardware

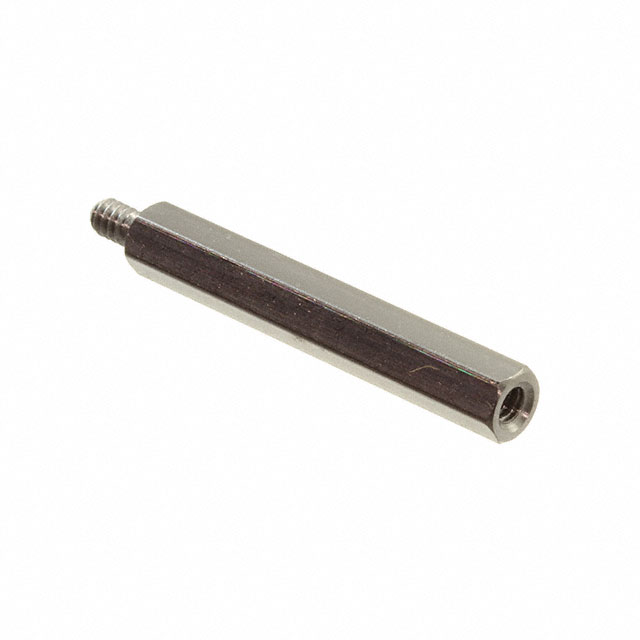

STANDOFF HEX M/F 4-40-THD STAINLESS STEEL PASSIVATED
Deep-Dive with AI
Search across all available documentation for this part.
4515-440-SS-20
ActiveRAF Electronic Hardware
STANDOFF HEX M/F 4-40-THD STAINLESS STEEL PASSIVATED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4515-440-SS-20 |
|---|---|
| Between Board Height | 28.58 mm |
| Between Board Height | 1.125 in |
| Diameter - Outside [custom] | 0.1875 in |
| Diameter - Outside [diameter] | 0.188 in, 4.78 mm |
| Gender | Male, Female |
| Length - Overall [x] | 1.313 in |
| Length - Overall [x] | 33.34 mm |
| Material | Stainless Steel |
| Plating | Passivated |
| Screw, Thread Size | #4-40 |
| Threaded/Unthreaded | Threaded |
| Type | Hex Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.69 | |
| 5 | $ 1.42 | |||
| 10 | $ 1.33 | |||
| 25 | $ 1.22 | |||
| 50 | $ 1.15 | |||
| 100 | $ 1.09 | |||
| 250 | $ 1.01 | |||
| 500 | $ 0.97 | |||
| 1000 | $ 0.92 | |||
Description
General part information
4515-440 Series
Hex Standoff Threaded #4-40 Stainless Steel 1.125" (28.58mm)
