207017 Series

Part	Note	Contact Termination	Pitch	Connector Type	Number of Rows	Mounting Type	Number of Positions	Fastening Type	Contact Type	Color	Features	Insulation Material	Operating Temperature (Min)	Operating Temperature (Max)	Row Spacing
Molex 2070170012	Contacts Not Included	Crimp	0.165 in	Plug	2	Panel Mount Snap-In	12	Locking Ramp	Male Pin	Natural	Sealed	Nylon 6/6 Polyamide (PA66)	-40 °C	105 °C	0.165 in
Molex 2070170004		Crimp	0.165 in	Plug	2	Panel Mount Snap-In	4	Locking Ramp	Female Socket	Natural	Sealed	Nylon 6/6 Polyamide (PA66)	-40 °C	105 °C	0.165 in

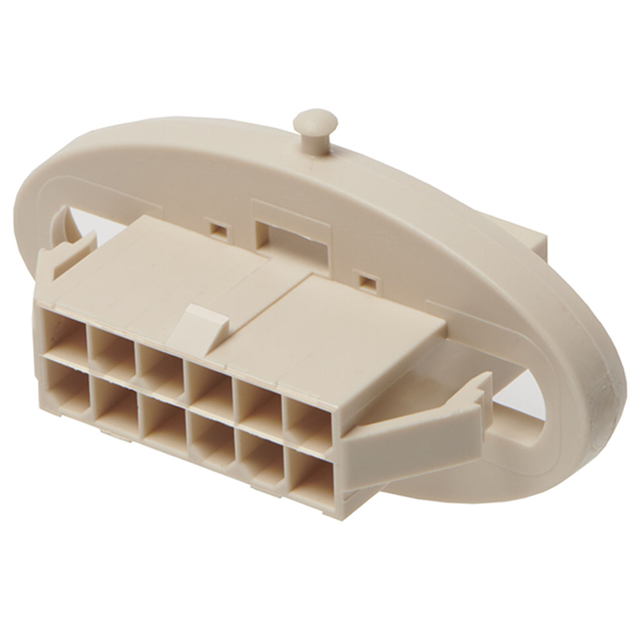

Molex 2070170008	Contacts Not Included	Crimp	0.165 in	Plug	2	Panel Mount Snap-In	8	Locking Ramp	Male Pin	Natural	Sealed	Nylon 6/6 Polyamide (PA66)	-40 °C	105 °C	0.165 in
Molex 2070170018		Crimp	0.165 in	Plug	2	Panel Mount Snap-In	18	Locking Ramp	Female Socket	Natural	Sealed	Nylon 6/6 Polyamide (PA66)	-40 °C	105 °C	0.165 in
Molex 2070170016		Crimp	0.165 in	Plug	2	Panel Mount Snap-In	16	Locking Ramp	Female Socket	Natural	Sealed	Nylon 6/6 Polyamide (PA66)	-40 °C	105 °C	0.165 in
Molex 2070170010	Contacts Not Included	Crimp	0.165 in	Plug	2	Panel Mount Snap-In	10	Locking Ramp	Male Pin	Natural	Sealed	Nylon 6/6 Polyamide (PA66)	-40 °C	105 °C	0.165 in
Molex 2070170014	Contacts Not Included	Crimp	0.165 in	Plug	2	Panel Mount Snap-In	14	Locking Ramp	Male Pin	Natural	Sealed	Nylon 6/6 Polyamide (PA66)	-40 °C	105 °C	0.165 in
Molex 2070170006		Crimp	0.165 in	Plug	2	Panel Mount Snap-In	6	Locking Ramp	Female Socket	Natural	Sealed	Nylon 6/6 Polyamide (PA66)	-40 °C	105 °C	0.165 in
