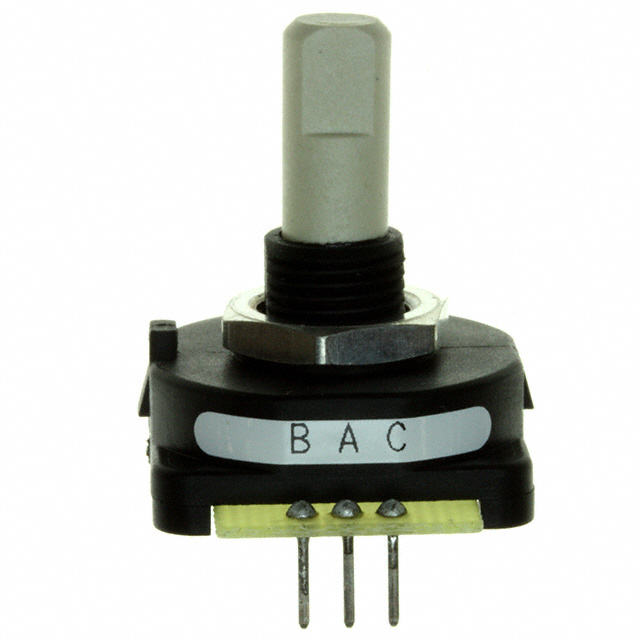

25LB45-Q

Active

Grayhill Inc.

ROTARY ENCODER MECHANICAL 8PPR

Search across all available documentation for this part.

Active

Grayhill Inc.

ROTARY ENCODER MECHANICAL 8PPR

Technical Specifications

Parameters and characteristics for this part

Specification	25LB45-Q

Actuator Type	0.25
Actuator Type	Flatted End
Built in Switch	False
Detent	True
Encoder Type	Mechanical
Mounting Type	PCB Through Hole, Panel
Orientation	Vertical
Output Type	Quadrature (Incremental)
Pulses per Revolution	8
Rotational Life (Cycles Min) [Min]	100K
Termination Style	PC Pin

ROTARY ENCODER MECHANICAL 8PPR

Part	Termination Style	Encoder Type	Pulses per Revolution	Output Type	Rotational Life (Cycles Min) [Min]	Detent	Orientation	Actuator Type	Actuator Type	Mounting Type	Built in Switch
Grayhill Inc. 25LB45-Q	PC Pin	Mechanical	8	Quadrature (Incremental)	100K		Vertical	0.25	Flatted End	Panel, PCB Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Encoder Mechanical 8 Quadrature (Incremental) Vertical
