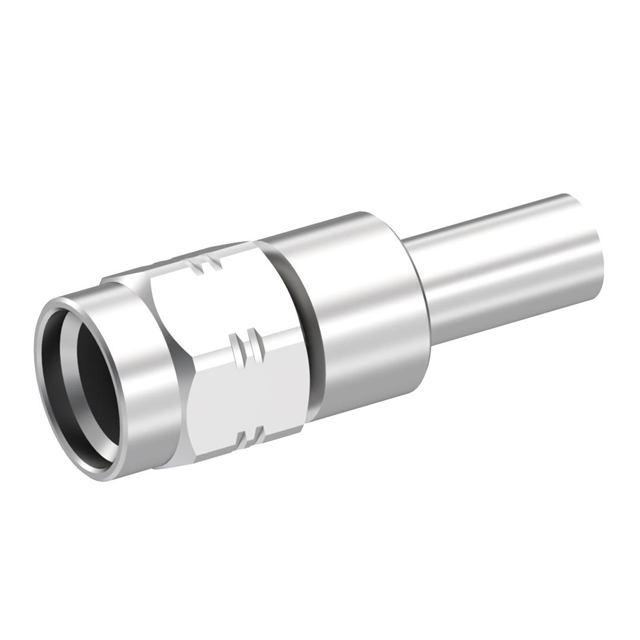

Specification	R300124040

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-316 Double Braid
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	RP-SMA
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	12.4 GHz
Housing Color	Silver
Impedance	50 Ohm
Mating Cycles	100 cycles
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Crimp
Voltage Rating	250 V

R30012 Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Mating Cycles	Dielectric Material	Body Finish	Voltage Rating	Center Contact Plating	Body Material	Fastening Type	Number of Ports	Connector Type	Impedance	Connector Style	Contact Termination	Mounting Feature	Frequency - Max	Cable Group	Center Contact Material	Housing Color	Mounting Type	Shield Termination
Radiall USA, Inc. R300124240W	-65 °C	165 °C	500 cycles	Polytetrafluoroethylene (PTFE)	White Bronze	250 V	Gold	Brass	Threaded	1	Jack Male Pin	50 Ohm	RP-SMA	Crimp	Bulkhead Front Side Nut	12.4 GHz	316 RG-188	Brass	Silver	Panel Mount	Crimp
Radiall USA, Inc. R300124040	-65 °C	165 °C	100 cycles	Polytetrafluoroethylene (PTFE)	White Bronze	250 V	Gold	Brass	Threaded	1	Female Socket Plug	50 Ohm	RP-SMA	Crimp		12.4 GHz	RG-316 Double Braid	Beryllium Copper	Silver	Free Hanging (In-Line)	Crimp
