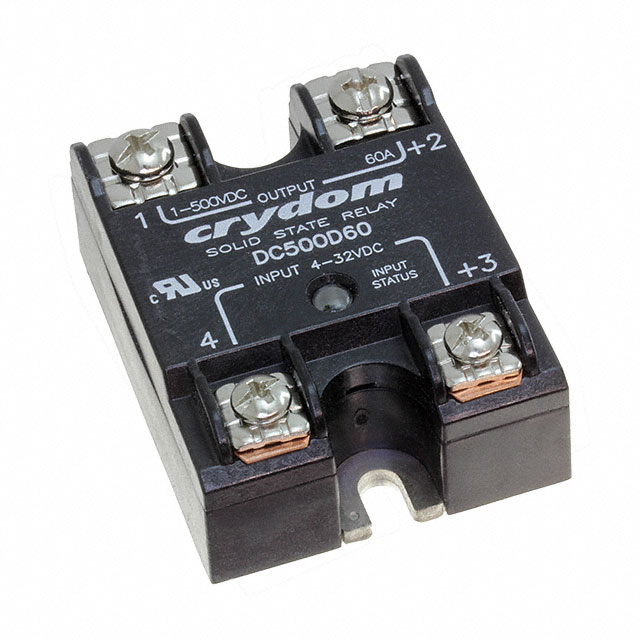

DC500D60
ActiveSensata-Crydom
SOLID STATE RELAYS - SSRS SOLID STATE RELAY 500 VDC
DC500D60
ActiveSensata-Crydom
SOLID STATE RELAYS - SSRS SOLID STATE RELAY 500 VDC
Description
General part information
DC500D Series
Solid State SPST-NO (1 Form A) Hockey Puck
Technical Specifications
Parameters and characteristics for this part
| Specification | DC500D60 |
|---|---|
| Approval Agency | cURus, CE |
| Circuit | SPST-NO (1 Form A) |
| Load Current | 60 A |
| Mounting Type | Chassis Mount |
| On-State Resistance (Max) | 13 mOhms |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | DC |
| Package / Case | Hockey Puck |
| Termination Style | Screw Terminal |
| Voltage - Input (DC) Maximum | 32 VDC |
| Voltage - Input (DC) Minimum | 4 VDC |
| Voltage - Load (Max) | 500 V |
| Voltage - Load (Min) | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
