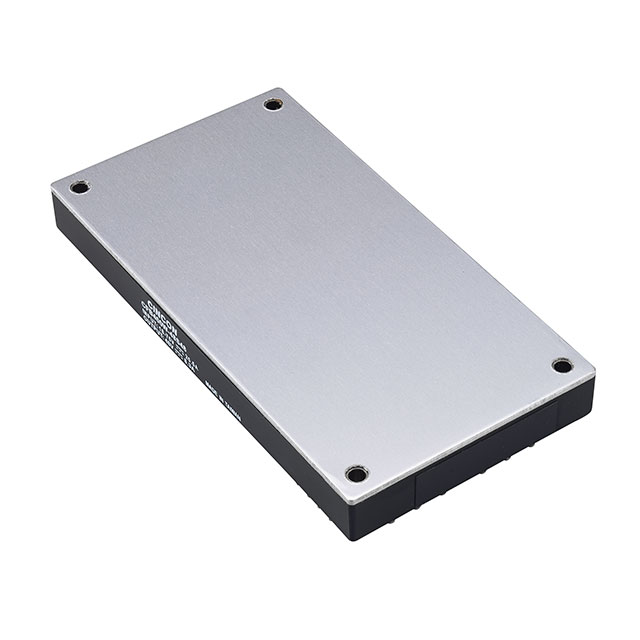

CFB400W-48S28

Active

Cincon Electronics Co. LTD

DC DC CONVERTER 28V 400W

Search across all available documentation for this part.

Active

Cincon Electronics Co. LTD

DC DC CONVERTER 28V 400W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 48V 399W

Part	Approval Agency	Efficiency	Voltage - Isolation	Voltage - Input (Max) [Max]	Supplier Device Package	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Features	Package / Case	Number of Outputs	Voltage - Input (Min) [Min]	Standard Number	Applications	Power (Watts)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Type	Current - Output (Max) [Max]	Control Features
Cincon Electronics Co. LTD CFB400W-24S48	CE, cURus	86.5 %	1.5 kV	36 V	Full Brick	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	OCP, OTP, OVP, Remote On/Off	Full Brick	1	9 V	60950-1	ITE (Commercial)	399 W	Through Hole	-40 °C	100 °C	48 V	Isolated Module	8.3 A	Active Low, Enable
Cincon Electronics Co. LTD CFB400W-48S28	CE, cURus	90 %	1.5 kV	75 V	Full Brick	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	OCP, OTP, OVP, Remote On/Off	Full Brick	1	18 V	60950-1	ITE (Commercial)	400 W	Through Hole	-40 °C	100 °C	28 V	Isolated Module	14.3 A	Active Low, Enable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 28V 14.3A 18V - 75V Input

Technical documentation and resources

No documents available
