Technical Specifications
Parameters and characteristics for this part
| Specification | T1619161120-000 |
|---|---|
| Connector Type | Base - Box Mount |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | H16A |
| Size / Dimension [x] | 96 mm |
| Size / Dimension [x] | 3.78 " |
| Size / Dimension [y] | 50 mm |
| Size / Dimension [y] | 1.969 in |
| Size / Dimension [z] | 57 mm |
| Size / Dimension [z] | 2.244 " |
| Style | Side Entry |
| Thread Size | M20 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.28 | |
| 14 | $ 6.59 | |||
| 28 | $ 6.41 | |||
| 56 | $ 6.17 | |||
| 105 | $ 6.14 | |||
T1619 Series
H16A-SGRS-M20
| Part | Housing Color | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Style | Housing Material | Size | Ingress Protection | Connector Type | Thread Size | Housing Finish | Lock Location |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T1619161120-000 | Gray | 125 °C | -40 °C | 57 mm | 50 mm | 96 mm | 3.78 " | 1.969 in | 2.244 " | Side Entry | Aluminum Alloy, Die Cast | H16A | IP65 - Dust Tight, Water Resistant | Base - Box Mount | M20 | Powder Coated | Locking Clip (2) on Base Bottom |
Description
General part information
T1619 Series

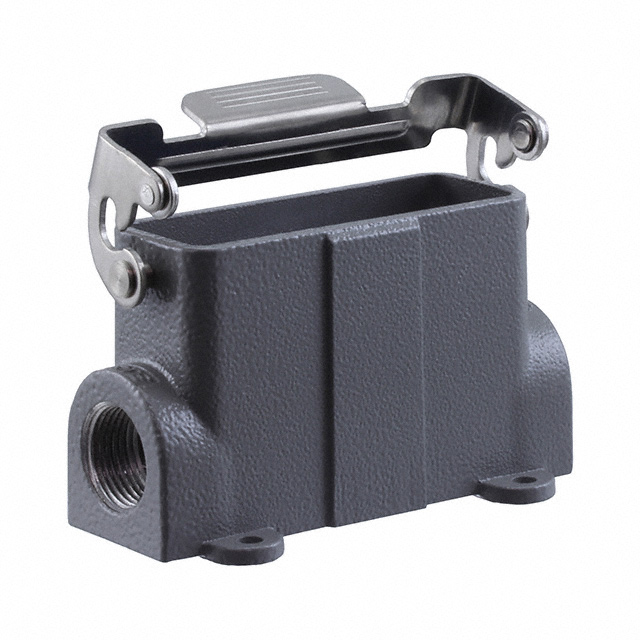

Base - Box Mount Connector Side Entry M20 H16A IP65 - Dust Tight, Water Resistant
