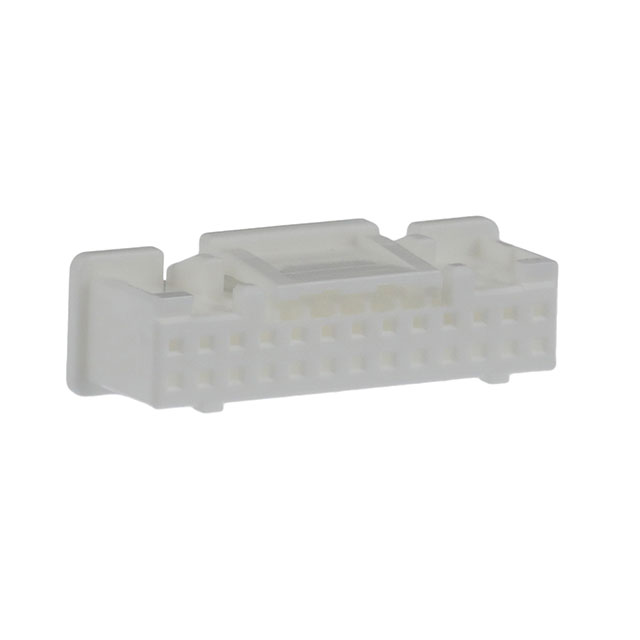

PUDP-26V-S

Active

JST Sales America Inc.

CONN RCPT HSG 26POS 2.00MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN RCPT HSG 26POS 2.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	PUDP-26V-S

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	26
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in

Part	Row Spacing	Row Spacing	Number of Rows	Connector Type	Contact Type	Number of Positions	Note	Color	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Mounting Type	Pitch [x]	Pitch [x]	Fastening Type
JST Sales America Inc. PUDP-26V-S	2 mm	0.079 in	2	Receptacle	Female Socket	26	Contacts Not Included	Natural	Polybutylene Terephthalate (PBT)	-25 °C	85 °C	Crimp	Free Hanging (In-Line)	0.079 in	2 mm	Latch Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 Rectangular Connectors - Housings Receptacle Natural 0.079" (2.00mm)
