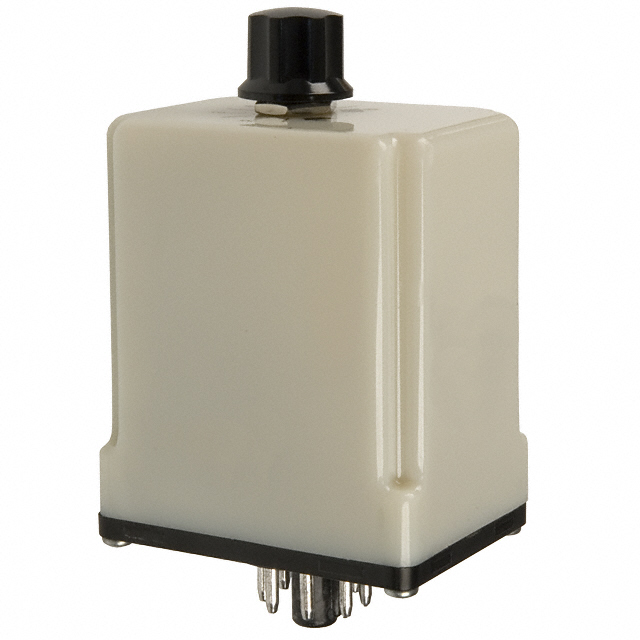

CB-1007B-70

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY TIME DELAY 100MIN 10A 277V

Search across all available documentation for this part.

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY TIME DELAY 100MIN 10A 277V

Technical Specifications

Parameters and characteristics for this part

Specification	CB-1007B-70

Circuit	DPDT (2 Form C)
Contact Rating @ Voltage [custom]	277 VAC
Contact Rating @ Voltage [custom]	10 A
Delay Time [Max]	100 Min
Delay Time [Min]	10 Min
Function	On-Delay
Mounting Type	Socketable
Relay Type	Mechanical Relay
Termination Style	Plug In, 8 Pin (Octal)
Timing Adjustment Method	Hand Dial
Timing Initiate Method	Input Voltage
Voltage - Supply	120 VAC

Part	Termination Style	Voltage - Supply	Circuit	Timing Adjustment Method	Function	Delay Time [Max]	Delay Time [Min]	Mounting Type	Contact Rating @ Voltage [custom]	Contact Rating @ Voltage [custom]	Relay Type	Timing Initiate Method
TE Connectivity Potter & Brumfield Relays CB-1007B-70	Plug In 8 Pin (Octal)	120 VAC	DPDT (2 Form C)	Hand Dial	On-Delay	100 Min	10 Min	Socketable	277 VAC	10 A	Mechanical Relay	Input Voltage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

On-Delay Time Delay Relay DPDT (2 Form C) 10 Min ~ 100 Min Delay 10A @ 277VAC Socketable
