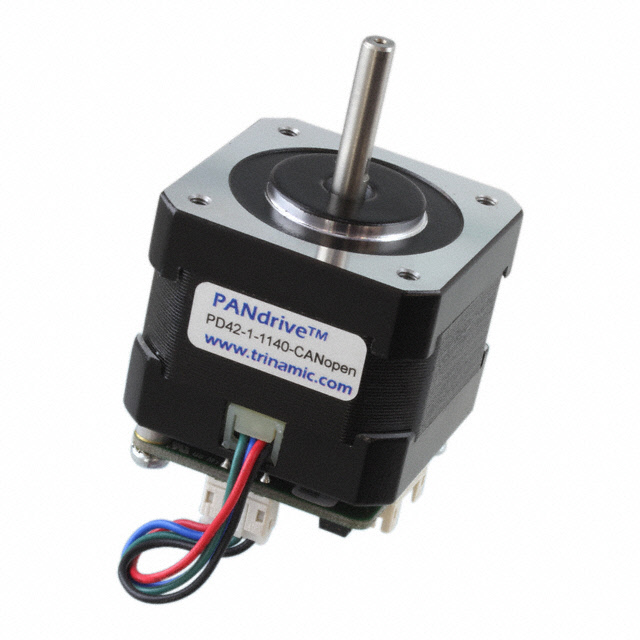

PD42-1-1140-CANOPEN
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER MOTOR HYBRID BIPOLAR 24V
Deep-Dive with AI
Search across all available documentation for this part.
PD42-1-1140-CANOPEN
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER MOTOR HYBRID BIPOLAR 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PD42-1-1140-CANOPEN | PD42-1 Series |
|---|---|---|
| Coil Resistance | - | 1 Ohms |
| Coil Type | Bipolar | Bipolar |
| Current Rating (Amps) | 2 A | 1 - 2 A |
| Diameter - Shaft [diameter] | 0.197 in | 0.197 in |
| Diameter - Shaft [diameter] | 5 mm | 5 mm |
| Features | Flatted Shaft, Integrated Controller | Flatted Shaft, Integrated Controller, Round Shaft |
| Function | - | Servomotor |
| Length - Shaft and Bearing | - | 0.866 in |
| Length - Shaft and Bearing | - | 22 mm |
| Length - Shaft and Bearing [x] | 24 mm | 24 mm |
| Length - Shaft and Bearing [x] | 0.945 in | 0.945 in |
| Motor Type | - | Brushless (BLDC) |
| Mounting Hole Spacing | - | 0.988 - 1.22 in |
| Mounting Hole Spacing | - | 25.1 - 31 mm |
| NEMA Frame Size | 17 | 17 |
| Operating Temperature | - | -20 C |
| Operating Temperature | - | 40 - 50 °C |
| Rotor Inertia | - | 35 gcm² |
| RPM | - | 4000 RPM |
| Size / Dimension [x] | 42 mm | 42 mm |
| Size / Dimension [x] | 1.654 in | 1.654 in |
| Size / Dimension [y] | 1.654 " | 1.654 " |
| Size / Dimension [y] | 42 mm | 42 mm |
| Step Angle | 1.8 ° | 1.8 ° |
| Steps per Revolution | 200 | 200 |
| Termination Style | - | Connector |
| Torque - Holding (oz-in / mNm) | 31.2 oz-in | 31.15 - 38.2 oz-in |
| Torque - Holding (oz-in / mNm) | 220 mNm | 220 - 270 mNm |
| Type | Hybrid | DC Motor, Hybrid |
| Voltage - Rated | 24 VDC | 2 - 24 VDC |
| Weight | 220.45 g, 0.486 lb | 0.486 - 220.45 g |
| Weight | - | 259.91 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Case | 1 | $ 241.74 | |
PD42-1 Series
SERVOMOTOR 4000 RPM 24V
| Part | Voltage - Rated | Function | RPM | Length - Shaft and Bearing | Length - Shaft and Bearing | Mounting Hole Spacing | Mounting Hole Spacing | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Features | Type | Motor Type | NEMA Frame Size | Coil Type | Steps per Revolution | Weight | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) | Step Angle | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Current Rating (Amps) | Rotor Inertia | Coil Resistance | Weight | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated PD42-1-1670-TMCL | 24 VDC | Servomotor | 4000 RPM | 0.866 in | 22 mm | 0.988 in | 25.1 mm | 0.197 in | 5 mm | -20 C | 40 °C | 42 mm | 1.654 " | 1.654 in | 42 mm | Flatted Shaft, Integrated Controller | DC Motor | Brushless (BLDC) | ||||||||||||||
Analog Devices Inc./Maxim Integrated PD42-1-1140-TMCL | 24 VDC | 0.197 in | 5 mm | 42 mm | 1.654 " | 1.654 in | 42 mm | Flatted Shaft, Integrated Controller | Hybrid | 17 | Bipolar | 200 | 0.486 lb, 220.45 g | 31.2 oz-in | 220 mNm | 1.8 ° | 24 mm | 0.945 in | 2 A | |||||||||||||
Analog Devices Inc./Maxim Integrated PD42-1-1140-CANOPEN | 24 VDC | 0.197 in | 5 mm | 42 mm | 1.654 " | 1.654 in | 42 mm | Flatted Shaft, Integrated Controller | Hybrid | 17 | Bipolar | 200 | 0.486 lb, 220.45 g | 31.2 oz-in | 220 mNm | 1.8 ° | 24 mm | 0.945 in | 2 A | |||||||||||||
Analog Devices Inc./Maxim Integrated PD42-1-1240-TMCL | 24 VDC | 1.22 in | 31 mm | 0.197 in | 5 mm | -20 C | 50 °C | 42 mm | 1.654 " | 1.654 in | 42 mm | Flatted Shaft, Integrated Controller | Hybrid | 17 | Bipolar | 200 | 31.15 oz-in | 220 mNm | 1.8 ° | 24 mm | 0.945 in | 2 A | 35 gcm² | 1 Ohms | ||||||||
Analog Devices Inc./Maxim Integrated PD42-1-1070 | 24 VDC | 1.22 in | 30.99 mm | -20 C | 50 °C | 42 mm | 1.654 " | 1.654 in | 42 mm | Integrated Controller, Round Shaft | Hybrid | 17 | Bipolar | 200 | 0.573 lb | 31.2 oz-in | 220 mNm | 1.8 ° | 1 A | 35 gcm² | 1 Ohms | 259.91 g | Connector | |||||||||
Analog Devices Inc./Maxim Integrated PD42-1-1670-CANOPEN | 24 VDC | Servomotor | 4000 RPM | 0.866 in | 22 mm | 0.988 in | 25.1 mm | 0.197 in | 5 mm | -20 C | 40 °C | 42 mm | 1.654 " | 1.654 in | 42 mm | Flatted Shaft, Integrated Controller | DC Motor | Brushless (BLDC) | ||||||||||||||
Analog Devices Inc./Maxim Integrated PD42-1-1141 | 24 VDC | 0.197 in | 5 mm | 42 mm | 1.654 " | 1.654 in | 42 mm | Flatted Shaft, Integrated Controller | Hybrid | 17 | Bipolar | 200 | 0.486 lb, 220.45 g | 38.2 oz-in | 270 mNm | 1.8 ° | 24 mm | 0.945 in | 2 A | |||||||||||||
Analog Devices Inc./Maxim Integrated PD42-1-1370-TMCL | 2 VDC | 1.22 in | 31 mm | 0.197 in | 5 mm | -20 C | 50 °C | 42 mm | 1.654 " | 1.654 in | 42 mm | Flatted Shaft, Integrated Controller | Hybrid | 17 | Bipolar | 200 | 31.16 oz-in | 220 mNm | 1.8 ° | 24 mm | 0.945 in | 2 A | 35 gcm² | 1 Ohms | Connector |
Description
General part information
PD42-1 Series
Bipolar Stepper Motor Hybrid Frame Size 17 200.0 Step 2 A 24VDC
