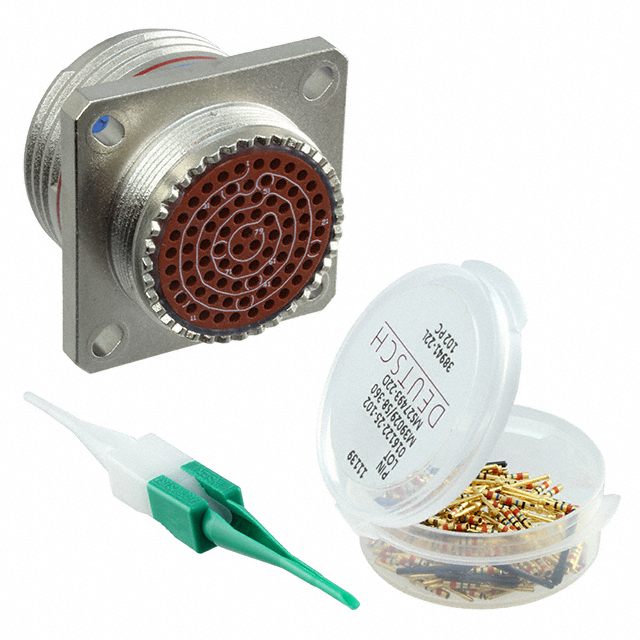

D38999/20MG35PN
ActiveTE Connectivity Raychem Cable Protection
CONN RCPT MALE 79POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D38999/20MG35PN
ActiveTE Connectivity Raychem Cable Protection
CONN RCPT MALE 79POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | D38999/20MG35PN |
|---|---|
| Applications | Industrial, Aviation, Communication Systems, Military |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Insert Material | Thermoplastic |
| Mounting Feature | Flange |
| Number of Positions | 79 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -65 ░C |
| Orientation | N |
| Primary Material | Composite |
| Qualification | MIL-DTL-38999 Series III |
| Shell Finish | Electroless Nickel |
| Shell Material | Composite |
| Shell Size - Insert [Max] | 35 |
| Shell Size - Insert [Min] | 21 |
| Shell Size, MIL | G |
| Shielding | Shielded |
| Termination | Crimp |
| Voltage Rating | 550 VDC, 400 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 212.83 | |
| 1 | $ 87.06 | |||
| 10 | $ 202.70 | |||
| 10 | $ 75.45 | |||
| 25 | $ 66.58 | |||
| 25 | $ 121.85 | |||
| 50 | $ 59.57 | |||
| 100 | $ 52.24 | |||
Description
General part information
D38999/20MG Series
79 Position Circular Connector Receptacle, Male Pins Crimp
