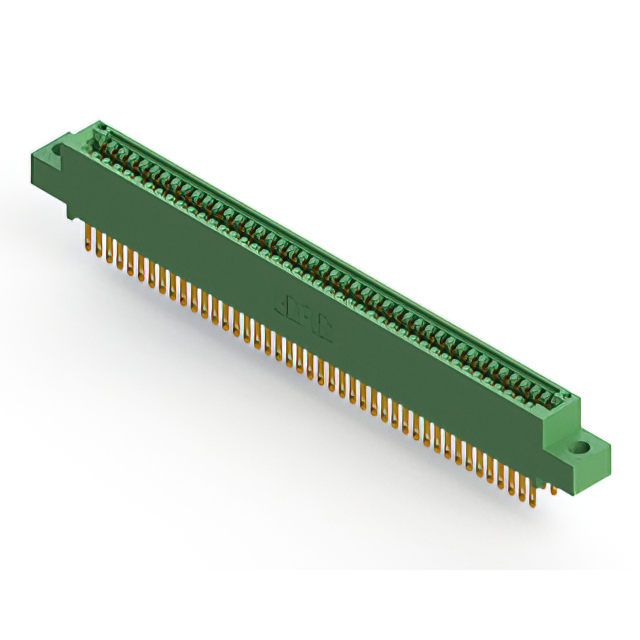

895-086-500-504

Active

EDAC Inc.

CONN EDGE DUAL FMALE 86POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

895-086-500-504

Active

EDAC Inc.

CONN EDGE DUAL FMALE 86POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	895-086-500-504

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, Unthreaded
Flange Feature [diameter]	0.156 in
Flange Feature [diameter]	3.96 mm
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	86
Number of Positions/Bay/Row [custom]	43
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

895-086 Series

...

Part	Card Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Material - Insulation	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Pitch [x]	Pitch [x]	Number of Positions/Bay/Row [custom]	Contact Type	Color	Contact Finish	Termination	Contact Material	Gender	Read Out	Termination Rows	Number of Positions	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Flange Feature	Flange Feature
EDAC Inc. 895-086-521-203	Non Specified - Dual Edge	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Polyphenylene Sulfide (PPS)	Through Hole	10 Áin	0.25 Ám	125 °C	-40 °C	2	2.54 mm	0.1 in	43	Cantilever	Black	Gold	Solder	Copper Alloy	Female	Dual	2	86	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 895-086-520-804	Non Specified - Dual Edge	0.156 in	Top Mount Opening Unthreaded	3.96 mm	Polyphenylene Sulfide (PPS)	Through Hole	10 Áin	0.25 Ám	125 °C	-40 °C	2	2.54 mm	0.1 in	43	Cantilever	Black	Gold	Solder	Copper Alloy	Female	Dual	2	86	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 895-086-559-508	Non Specified - Dual Edge		4-40 Threaded Insert Top Mount Opening		Polyphenylene Sulfide (PPS)	Through Hole Right Angle	10 Áin	0.25 Ám	125 °C	-40 °C	2	2.54 mm	0.1 in	43	Cantilever	Black	Gold	Solder	Copper Alloy	Female	Dual	2	86	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 895-086-521-202	Non Specified - Dual Edge	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Polyphenylene Sulfide (PPS)	Through Hole	10 Áin	0.25 Ám	125 °C	-40 °C	2	2.54 mm	0.1 in	43	Cantilever	Black	Gold	Solder	Copper Alloy	Female	Dual	2	86	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 895-086-540-508	Non Specified - Dual Edge		4-40 Threaded Insert Top Mount Opening		Polyphenylene Sulfide (PPS)	Through Hole	10 Áin	0.25 Ám	125 °C	-40 °C	2	2.54 mm	0.1 in	43	Cantilever	Black	Gold	Wire Wrap	Copper Alloy	Female	Dual	2	86	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 895-086-520-502	Non Specified - Dual Edge				Polyphenylene Sulfide (PPS)	Through Hole	10 Áin	0.25 Ám	125 °C	-40 °C	2	2.54 mm	0.1 in	43	Cantilever	Black	Gold	Solder	Copper Alloy	Female	Dual	2	86	1.37 mm	0.054 "	1.78 mm	0.07 in	3.25 mm	0.128 in
EDAC Inc. 895-086-540-507	Non Specified - Dual Edge		M3 Threaded Insert Top Mount Opening		Polyphenylene Sulfide (PPS)	Through Hole	10 Áin	0.25 Ám	125 °C	-40 °C	2	2.54 mm	0.1 in	43	Cantilever	Black	Gold	Wire Wrap	Copper Alloy	Female	Dual	2	86	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 895-086-524-212	Non Specified - Dual Edge	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	Polyphenylene Sulfide (PPS)	Through Hole	10 Áin	0.25 Ám	125 °C	-40 °C	2	2.54 mm	0.1 in	43	Cantilever	Black	Gold	Solder	Copper Alloy	Female	Dual	2	86	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 895-086-500-504	Non Specified - Dual Edge	0.156 in	Top Mount Opening Unthreaded	3.96 mm	Polyphenylene Sulfide (PPS)	Through Hole	10 Áin	0.25 Ám	125 °C	-40 °C	2	2.54 mm	0.1 in	43	Cantilever	Black	Gold	Solder Eyelet(s)	Copper Alloy	Female	Dual	2	86	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 895-086-525-512	Non Specified - Dual Edge		Side Mount Opening Unthreaded		Polyphenylene Sulfide (PPS)	Through Hole	10 Áin	0.25 Ám	125 °C	-40 °C	2	2.54 mm	0.1 in	43	Cantilever	Black	Gold	Solder	Copper Alloy	Female	Dual	2	86	1.37 mm	0.054 "	1.78 mm	0.07 in	3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 141.35
Newark	Each	1	$ 169.64
		100	$ 90.00
		250	$ 69.41
		500	$ 60.00
		1000	$ 48.50

Description

General part information

895-086 Series

86 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
