1410142-1

Active

TE Connectivity AMP Connectors

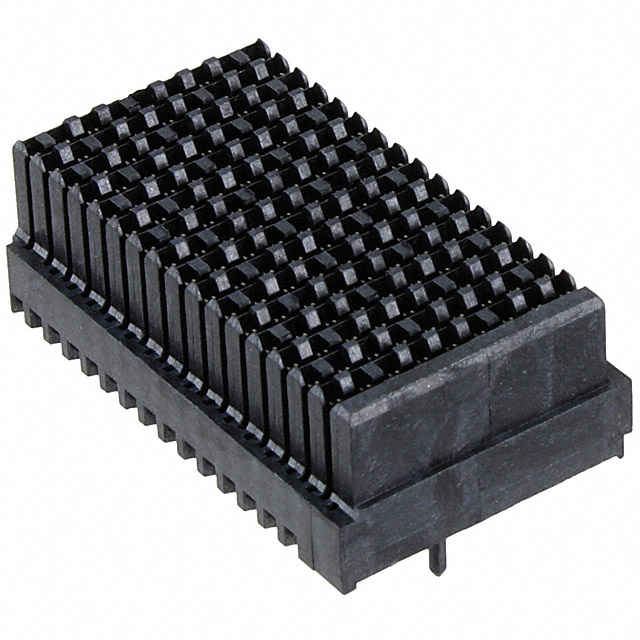

CONN RCPT VITA 41/46 144POS PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT VITA 41/46 144POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	1410142-1

Color	Black
Connector Style	Right End, VITA 41/46
Connector Type	Receptacle, Female Blade Sockets
Connector Usage	Backplane
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Features	Board Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Columns	16
Number of Positions	144
Number of Positions Loaded	All
Number of Rows	9
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.071 in
Pitch [x]	1.8 mm
Termination	Press-Fit

CONN RCPT VITA 41/46 144POS PCB

Part	Features	Number of Rows	Material Flammability Rating	Color	Operating Temperature [Max]	Operating Temperature [Min]	Connector Usage	Connector Type	Contact Finish	Termination	Pitch [x]	Pitch [x]	Number of Positions	Number of Positions Loaded	Mounting Type	Connector Style	Number of Columns	Contact Finish Thickness	Contact Finish Thickness
TE Connectivity AMP Connectors 1410142-1	Board Guide	9	UL94 V-0	Black	105 ░C	-55 °C	Backplane	Receptacle, Female Blade Sockets	Gold	Press-Fit	0.071 in	1.8 mm	144	All	Through Hole	Right End, VITA 41/46	16	50 µin	1.27 µm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

144 Connector Receptacle, Female Blade Sockets Through Hole Black VITA 41/46, Right End
