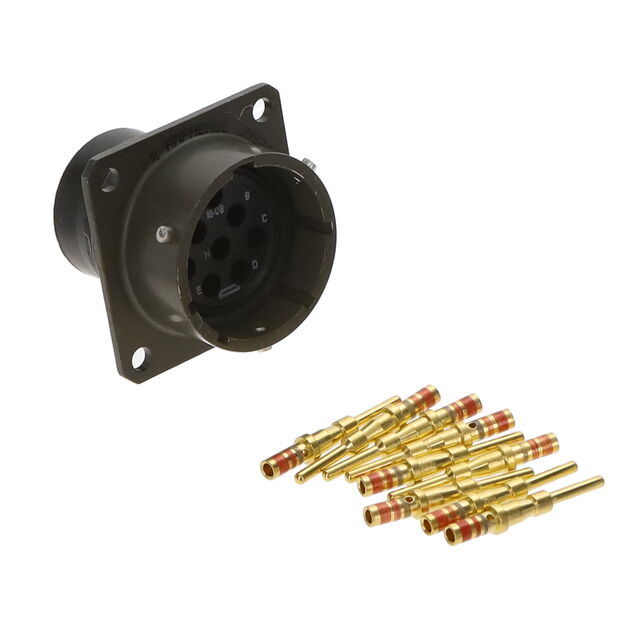

MS3122E16-8P

Active

Amphenol Aerospace Operations

CONN RCPT MALE 8POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN RCPT MALE 8POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	MS3122E16-8P

Applications	Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shielding	Unshielded
Termination	Crimp

Part	Shielding	Insert Material	Number of Positions	Applications	Contact Finish - Mating	Contact Material	Grade	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Mounting Feature	Ingress Protection	Color	Connector Type	Orientation	Termination	Qualification	Primary Material	Fastening Type	Shell Finish
Amphenol Aerospace Operations MS3122E16-8P	Unshielded	Neoprene	8	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Gold	Copper Alloy	Military	-55 °C	125 °C	Aluminum	Flange	Environment Resistant	Olive Drab	Male Pins Receptacle	N	Crimp	MIL-DTL-26482 Series I	Metal	Bayonet Lock	Olive Drab Chromate over Cadmium
Amphenol Aerospace Operations MS3122E16-8P(LC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Receptacle, Male Pins Crimp
