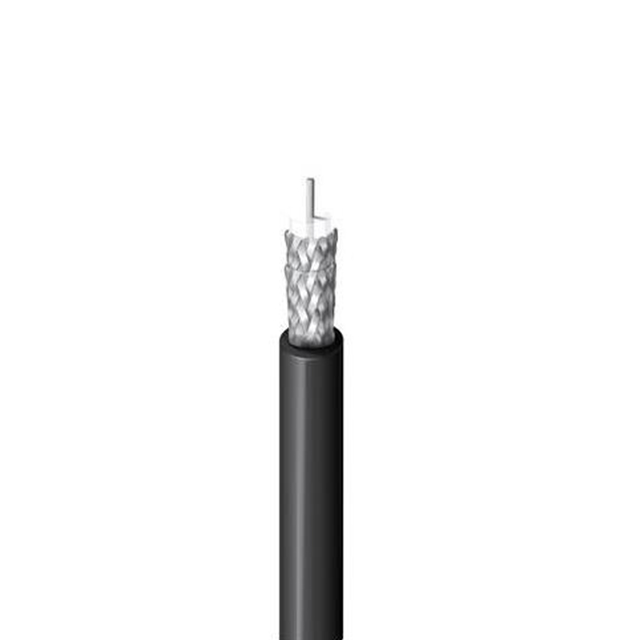

9273 010500

Active

Belden Inc.

M17/167-00001 COAX

Search across all available documentation for this part.

Active

Belden Inc.

M17/167-00001 COAX

Technical Specifications

Parameters and characteristics for this part

Specification	9273 010500

Cable Group	RG-223
Cable Type	Coaxial
Conductor Material	Copper, Silver Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.117 in
Dielectric Diameter [diameter]	2.97 mm
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	0.212 "
Jacket (Insulation) Diameter [diameter]	5.38 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	152.4 m
Length	6000 in
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Shield Coverage	95 %
Shield Material	Copper, Silver Coated
Shield Type	Double Braid
Usage	RF Signal
Wire Gauge	19 AWG

Part	Usage	Shield Coverage	Cable Type	Conductor Material	Length	Length	Jacket Color	Conductor Strand	Shield Type	Cable Group	Jacket (Insulation) Material	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Impedance
Belden Inc. 9273 010500	RF Signal	95 %	Coaxial	Copper Silver Coated	152.4 m	6000 in	Black	Solid	Double Braid	RG-223	Poly-Vinyl Chloride (PVC)	19 AWG	0.212 "	5.38 mm	-40 °C	60 °C	Copper Silver Coated	0.117 in	2.97 mm	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 7.26

General part information

Coaxial Cable 19 AWG RG-223 500.0' (152.40m) 50 Ohms
