8918 1891000

Active

Belden Inc.

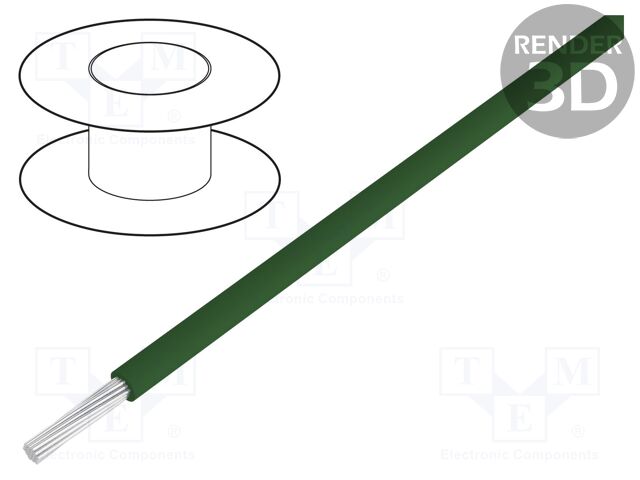

HOOK-UP STRND 18AWG GRN/YW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8918 1891000

Active

Belden Inc.

HOOK-UP STRND 18AWG GRN/YW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8918 1891000

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	2.79 mm
Jacket (Insulation) Diameter [diameter]	0.11 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.84 mm
Jacket (Insulation) Thickness	0.033 in
Jacket Color	Green, Yellow Stripe
Length	1000 ft
Length	304.8 m
Voltage	600 V
Wire Gauge	18 AWG

8918 Series

Part	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Jacket Color	Jacket (Insulation) Material	Length [x]	Length [x]	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length
Belden Inc. 8918 005100	600 V	2.79 mm	0.11 in	Copper Tinned	Green	Poly-Vinyl Chloride (PVC)	30.5 m	100 ft	18 AWG	0.84 mm	0.033 in	Hook-Up	16	30 AWG
Belden Inc. 8918 004100	600 V	2.79 mm	0.11 in	Copper Tinned	Yellow	Poly-Vinyl Chloride (PVC)	30.5 m	100 ft	18 AWG	0.84 mm	0.033 in	Hook-Up	16	30 AWG
Belden Inc. 8918 003100	600 V	2.79 mm	0.11 in	Copper Tinned	Orange	Poly-Vinyl Chloride (PVC)	30.5 m	100 ft	18 AWG	0.84 mm	0.033 in	Hook-Up	16	30 AWG
Belden Inc. 8918 0025000	600 V	2.79 mm	0.11 in	Copper Tinned	Red	Poly-Vinyl Chloride (PVC)			18 AWG	0.84 mm	0.033 in	Hook-Up	16	30 AWG
Belden Inc. 8918 010100	600 V	2.79 mm	0.11 in	Copper Tinned	Black	Poly-Vinyl Chloride (PVC)	30.5 m	100 ft	18 AWG	0.84 mm	0.033 in	Hook-Up	16	30 AWG
Belden Inc. 8918 1891000	600 V	2.79 mm	0.11 in	Copper Tinned	Green Yellow Stripe	Poly-Vinyl Chloride (PVC)			18 AWG	0.84 mm	0.033 in	Hook-Up	16	30 AWG	1000 ft	304.8 m
Belden Inc. 8918 0131000	600 V	2.79 mm	0.11 in	Copper Tinned	Blue	Poly-Vinyl Chloride (PVC)			18 AWG	0.84 mm	0.033 in	Hook-Up	16	30 AWG	1000 ft	304.8 m
Belden Inc. 8918 001100	600 V	2.79 mm	0.11 in	Copper Tinned	Brown	Poly-Vinyl Chloride (PVC)	30.5 m	100 ft	18 AWG	0.84 mm	0.033 in	Hook-Up	16	30 AWG
Belden Inc. 8918 0081000	600 V	2.79 mm	0.11 in	Copper Tinned	Gray	Poly-Vinyl Chloride (PVC)			18 AWG	0.84 mm	0.033 in	Hook-Up	16	30 AWG	1000 ft	304.8 m
Belden Inc. 8918 013100	600 V	2.79 mm	0.11 in	Copper Tinned	Blue	Poly-Vinyl Chloride (PVC)	30.5 m	100 ft	18 AWG	0.84 mm	0.033 in	Hook-Up	16	30 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.23

Description

General part information

8918 Series

18 AWG Hook-Up Wire 16/30 Green, Yellow Stripe 600V 1000.0' (304.8m)
