R7732RGE

Obsolete

Richtek USA Inc.

IC POWER MANAGEMENT

Search across all available documentation for this part.

Obsolete

Richtek USA Inc.

IC POWER MANAGEMENT

Technical Specifications

Parameters and characteristics for this part

IC POWER MANAGEMENT

Part	Output Phases	Clock Sync	Number of Outputs	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Supplier Device Package	Function	Package / Case	Synchronous Rectifier	Topology	Duty Cycle (Max) [Max]	Frequency - Switching	Mounting Type
Richtek USA Inc. R7732RGE	1		1	12 V	25 V	85 °C	-40 °C	Positive	SOT-23-6	Step-Down, Step-Up	SOT-23-6		Flyback	75 %	65 kHz	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

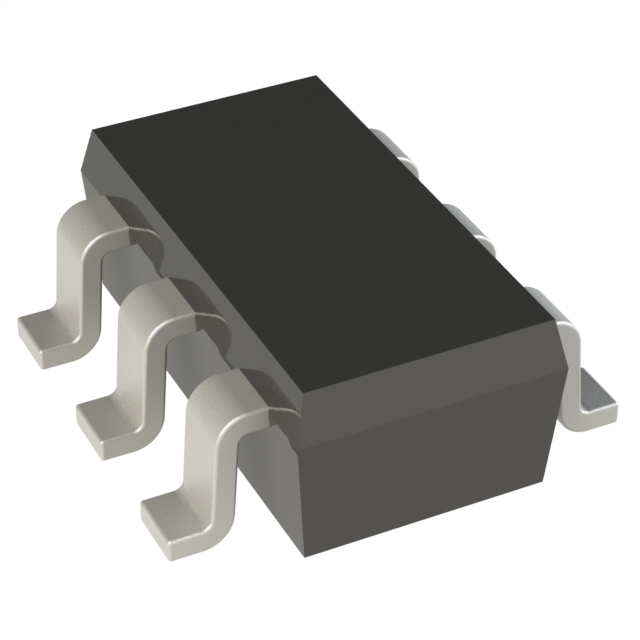

Flyback Regulator Positive Output Step-Up, Step-Down DC-DC Controller IC SOT-23-6

Technical documentation and resources
