30314-5002HB

Active

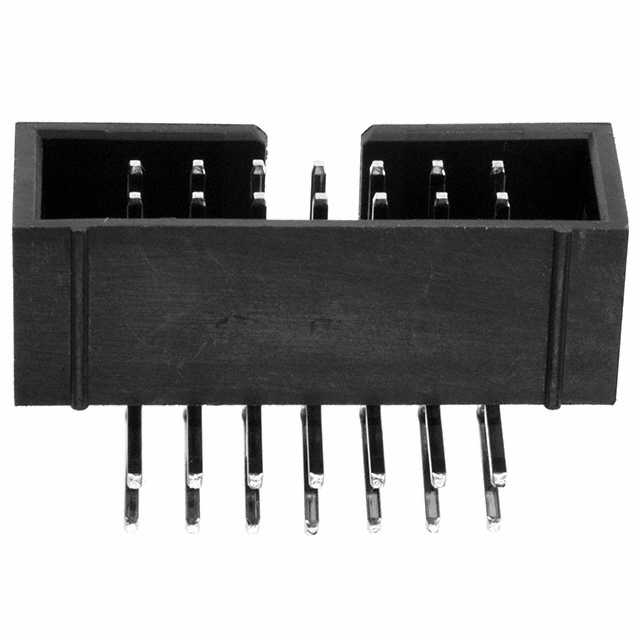

CONN HEADER R/A 14POS 2.54MM

Search across all available documentation for this part.

Active

CONN HEADER R/A 14POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	30314-5002HB

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	6 mm
Contact Length - Mating	0.236 in
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	8.4 mm
Insulation Height	0.331 in
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

CONN HEADER R/A 14POS 2.54MM

Part	Number of Positions Loaded	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Contact Finish - Post	Contact Finish Thickness - Post	Termination	Mounting Type	Insulation Material	Contact Length - Post [x]	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Insulation Color	Number of Positions	Contact Material	Features	Contact Type	Connector Type	Contact Finish Thickness - Mating	Contact Shape	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Finish - Mating	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Style	Number of Rows
3M 30314-5002HB	All	UL94 V-0	105 ░C	-55 °C	8.4 mm	0.331 in	Gold	Flash	Solder	Through Hole, Right Angle	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	0.11 in	2.79 mm	6 mm	0.236 in	Black	14	Brass	Keying Slot	Male Pin	Header	Flash	Square	0.1 in	2.54 mm	Push-Pull	Gold	Shrouded - 4 Wall	2.54 mm	0.1 in	Board to Board, Cable	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 14 position 0.100" (2.54mm)
