SRP1265A-6R0M

Active

Bourns Inc.

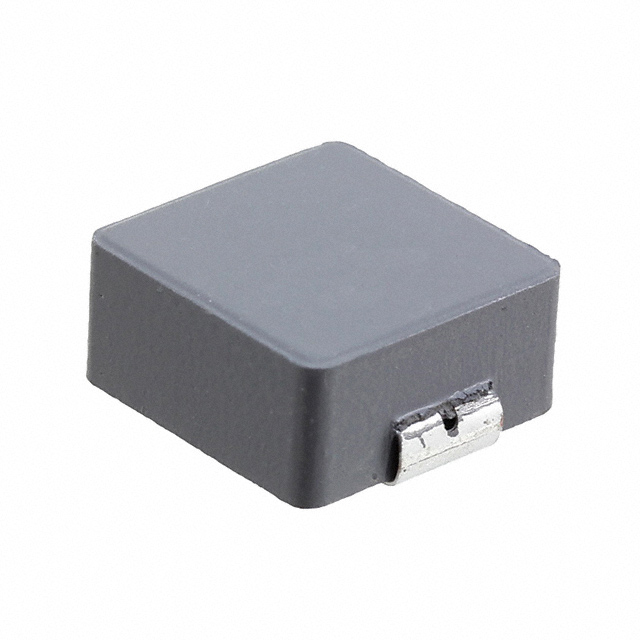

INDUCTOR POWER SHIELDED WIREWOUND 6UH 20% 100KHZ 20Q-FACTOR CARBONYL POWDER 12A 0.01OHM DCR AUTOMOTIVE AEC-Q200 T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SRP1265A-6R0M

Active

Bourns Inc.

INDUCTOR POWER SHIELDED WIREWOUND 6UH 20% 100KHZ 20Q-FACTOR CARBONYL POWDER 12A 0.01OHM DCR AUTOMOTIVE AEC-Q200 T/R

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRP1265A-6R0M

Current - Saturation (Isat)	23 A
Current Rating (Amps)	12 A
DC Resistance (DCR) [Max]	10 mOhm
Frequency - Self Resonant	14 MHz
Height - Seated (Max) [Max]	6.4 mm
Height - Seated (Max) [Max] [z]	0.252 "
Inductance	6 µH
Inductance Frequency - Test	100 kHz
Material - Core	Carbonyl Powder
Mounting Type	Surface Mount
Package / Case	Nonstandard
Q @ Freq	100 kHz, 20
Ratings	AEC-Q200
Shielding	Shielded
Size / Dimension [x]	13.5 mm
Size / Dimension [x]	0.531 in
Size / Dimension [y]	0.492 "
Size / Dimension [y]	12.5 mm
Tolerance	20 %
Type	Wirewound, Drum Core

SRP1265A Series

Part	Ratings	Inductance Frequency - Test	Package / Case	Current - Saturation (Isat)	Material - Core	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Frequency - Self Resonant	Inductance	Current Rating (Amps)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Mounting Type	DC Resistance (DCR) [Max]	Q @ Freq	Type	Tolerance	Shielding	DC Resistance (DCR)	Operating Temperature [Min]	Operating Temperature [Max]
Bourns Inc. SRP1265A-470M	AEC-Q200	100 kHz	Nonstandard	9.5 A	Carbonyl Powder	0.492 "	13.5 mm	0.531 in	12.5 mm	4 MHz	47 µH	6.5 A	6.4 mm	0.252 "	Surface Mount	90 mOhm	20 100 kHz	Drum Core Wirewound	20 %	Shielded
Bourns Inc. SRP1265A-R47M	AEC-Q200	100 kHz	Nonstandard	63 A	Carbonyl Powder	0.492 "	13.5 mm	0.531 in	12.5 mm	75 MHz	470 nH	41 A	6.4 mm	0.252 "	Surface Mount	1.2 mOhm	10 100 kHz	Drum Core Wirewound	20 %	Shielded
Bourns Inc. SRP1265A-6R0M	AEC-Q200	100 kHz	Nonstandard	23 A	Carbonyl Powder	0.492 "	13.5 mm	0.531 in	12.5 mm	14 MHz	6 µH	12 A	6.4 mm	0.252 "	Surface Mount	10 mOhm	20 100 kHz	Drum Core Wirewound	20 %	Shielded
Bourns Inc. SRP1265A-R82M	AEC-Q200	100 kHz	Nonstandard	50 A	Carbonyl Powder	0.492 "	13.5 mm	0.531 in	12.5 mm	50 MHz	820 nH	33 A	6.4 mm	0.252 "	Surface Mount	1.9 mOhm	15 100 kHz	Drum Core Wirewound	20 %	Shielded
Bourns Inc. SRP1265A-R22M	AEC-Q200	100 kHz	Nonstandard	112 A	Carbonyl Powder	0.492 "	13.5 mm	0.531 in	12.5 mm	130 MHz	220 nH	53 A	6.4 mm	0.252 "	Surface Mount		10 100 kHz	Drum Core Wirewound	20 %	Shielded	0.6 mOhm
Bourns Inc. SRP1265A-6R8M	AEC-Q200	100 kHz	Nonstandard	18 A	Carbonyl Powder	0.492 "	13.5 mm	0.531 in	12.5 mm	13 MHz	6.8 µH	11.5 A	6.4 mm	0.252 "	Surface Mount	11.5 mOhm	20 100 kHz	Drum Core Wirewound	20 %	Shielded		-55 °C	150 °C
