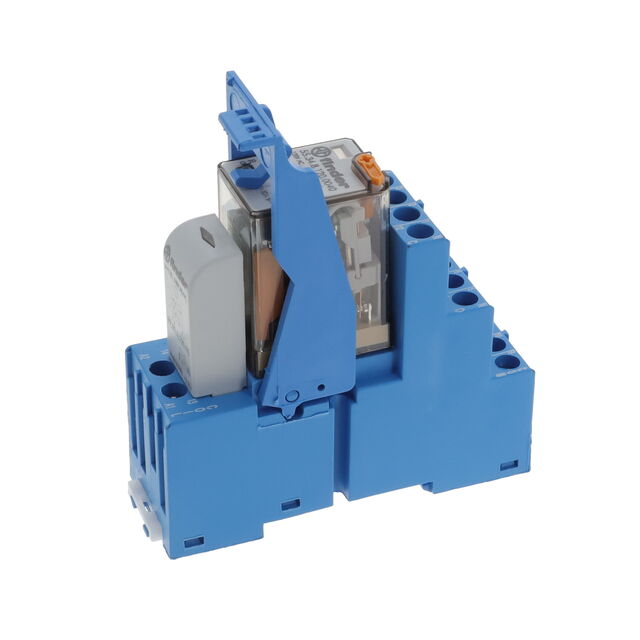

Specification	58.34.8.120.0060SPA

Approval Agency	RINA, CE, EAC, UKCA, VDE, CSA, cURus
Coil Current	12 mA
Coil Resistance	4700 Ohms
Coil Type	Non Latching
Coil Voltage	120 V
Contact Form	PDT, 4, Form, C
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	7 A
Features	Lighted Indicator, Varistor
Load - Max Switching (Apparent Power)	1750 VA
Mounting Type	DIN Rail
Must Operate Voltage	96 V
Must Release Voltage	24 VDC
Operate Time	11 ms
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Pin Count	4
Relay Type	General Purpose
Release Time	3 ms
Switching Voltage AC (Max)	250 VAC
Termination Style	Screw Terminal

58.34.8 Series

Part	Contact Material	Coil Type	Load - Max Switching (Apparent Power)	Termination Style	Switching Voltage AC (Max)	Approval Agency	Contact Rating (Current)	Features	Pin Count	Contact Form	Release Time	Must Operate Voltage	Must Release Voltage	Coil Current	Coil Voltage	Mounting Type	Operate Time	Operating Temperature (Min)	Operating Temperature (Max)	Relay Type	Coil Resistance
Finder Relays, Inc. 58.34.8.120.0060SPA	Silver Nickel (AgNi)	Non Latching	1750 VA	Screw Terminal	250 VAC	CE CSA cURus EAC RINA UKCA VDE	7 A	Lighted Indicator Varistor	4	4 C Form PDT	3 ms	96 V	24 VDC	12 mA	120 V	DIN Rail	11 ms	-40 °C	70 °C	General Purpose	4700 Ohms
Finder Relays, Inc. 58.34.8.024.0060SPA	Silver Nickel (AgNi)	Non Latching	1750 VA	Screw Terminal	250 VAC	CE CSA cURus EAC RINA UKCA VDE	7 A	Lighted Indicator Varistor	4	4 C Form PDT	3 ms	19.2 V	4.8 VAC	53 mA	24 VDC	DIN Rail	11 ms	-40 °C	70 °C	General Purpose	190 Ohms
Finder Relays, Inc. 58.34.8.230.0049SMA	Silver Nickel (AgNi)	Non Latching	1750 VA	Screw Terminal	250 VAC	CE CSA cURus EAC RINA UKCA VDE	7 A	Lighted Indicator Mechanical Indicator	4	4 C Form PDT	3 ms	184 VDC	46 V	6 mA	230 VDC	DIN Rail	11 ms	-40 °C	70 °C	General Purpose	17 kOhms
Finder Relays, Inc. 58.34.8.120.5060SPA	Gold (Au) Silver Nickel (AgNi)	Non Latching	1750 VA	Screw Terminal	250 VAC	CE CSA cURus EAC RINA UKCA VDE	7 A	Lighted Indicator Varistor	4	4 C Form PDT	3 ms	96 V	24 VDC	12 mA	120 V	DIN Rail	11 ms	-40 °C	70 °C	General Purpose	4700 Ohms
Finder Relays, Inc. 58.34.8.230.0060SPA	Silver Nickel (AgNi)	Non Latching	1750 VA	Screw Terminal	250 VAC	CE CSA cURus EAC RINA UKCA VDE	7 A	Lighted Indicator Varistor	4	4 C Form PDT	3 ms	184 VDC	46 V	6 mA	230 VDC	DIN Rail	11 ms	-40 °C	70 °C	General Purpose	17 kOhms
