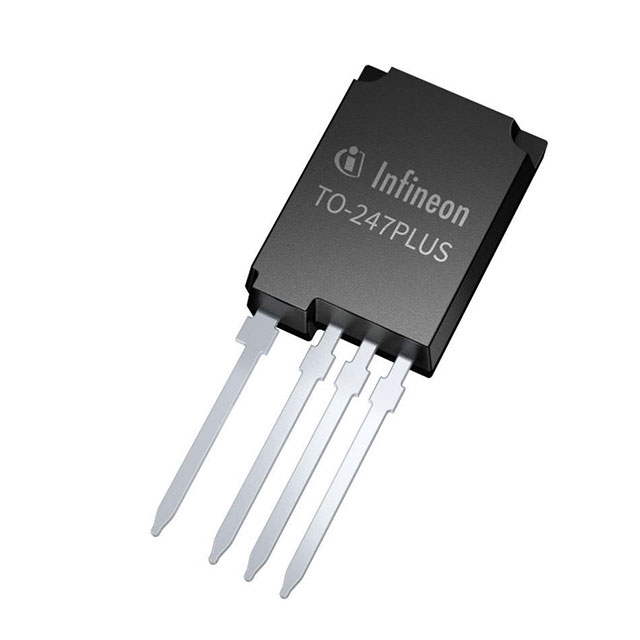

IKY140N120CH7XKSA1
ActiveInfineon Technologies
1200 V HARD-SWITCHING AND 140 A TRENCHSTOP™ IGBT7 H7 DISCRETE IN TO-247PLUS 4PIN PACKAGE TECHNOLOGY.
Deep-Dive with AI
Search across all available documentation for this part.
IKY140N120CH7XKSA1
ActiveInfineon Technologies
1200 V HARD-SWITCHING AND 140 A TRENCHSTOP™ IGBT7 H7 DISCRETE IN TO-247PLUS 4PIN PACKAGE TECHNOLOGY.
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IKY140N120CH7XKSA1 |
|---|---|
| Current - Collector Pulsed (Icm) | 560 A |
| Gate Charge | 1032 nC |
| IGBT Type | Trench Field Stop |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 175 °C |
| Operating Temperature [Min] | -40 C |
| Package / Case | TO-247-4 |
| Power - Max [Max] | 962 W |
| Reverse Recovery Time (trr) | 101 ns |
| Supplier Device Package | PG-TO247-4-U10 |
| Switching Energy | 3.9 mJ, 2.64 mJ |
| Td (on/off) @ 25°C | 407 ns, 50 ns |
| Vce(on) (Max) @ Vge, Ic | 2.15 V |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 1200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
IKY140N120 Series
Hard-switching 1200 V, 140 ATRENCHSTOP™ IGBT7H7 discrete inTO-247PLUS 4pin packagehas been developed to fulfill the demand in applications focusing on decarbonization such as solar photovoltaic, uninterruptible power supplies and battery chargers.
