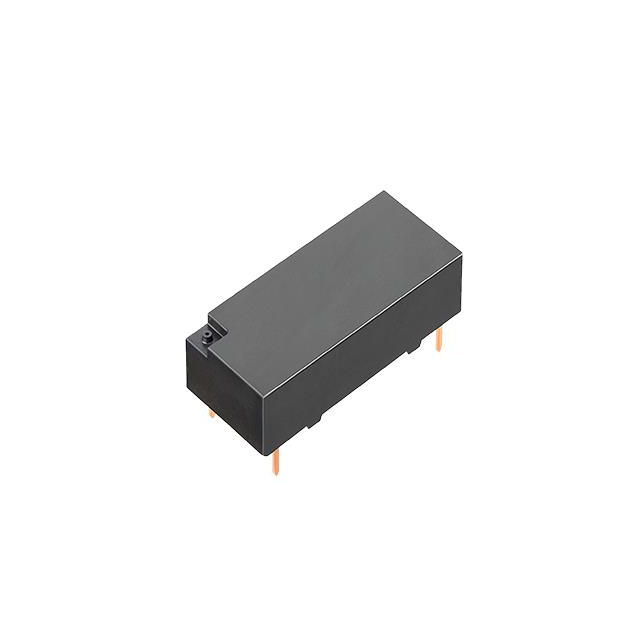

ASFM0052X
ActivePanasonic Electric Works
RELAY SAFETY DPST NO/NC 6A/3A 5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ASFM0052X
ActivePanasonic Electric Works
RELAY SAFETY DPST NO/NC 6A/3A 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ASFM0052X |
|---|---|
| Coil Current | 54 mA |
| Coil Power | 270 mW |
| Coil Resistance | 92.6 Ohms |
| Coil Voltage | 5 VDC |
| Contact Form | DPST-NO/NC |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 6 A |
| Features | Sealed - Flux Protection |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 10 ms |
| Switching Voltage | 250 VAC, 125 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 39.34 | |
| 10 | $ 35.03 | |||
| 25 | $ 33.45 | |||
| 50 | $ 32.30 | |||
| 100 | $ 31.19 | |||
| Tape & Reel (TR) | 250 | $ 25.02 | ||
Description
General part information
ASFM0052 Series
RELAY SAFETY DPST NO/NC 6A/3A 5V
