TS10KL80H
ActiveTaiwan Semiconductor Corporation
BRIDGE RECT 1PHASE 800V 10A KBJL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TS10KL80H
ActiveTaiwan Semiconductor Corporation
BRIDGE RECT 1PHASE 800V 10A KBJL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TS10KL80H |
|---|---|
| Current - Average Rectified (Io) | 10 A |
| Current - Reverse Leakage @ Vr | 5 µA |
| Diode Type | Single Phase |
| Grade | Automotive |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |

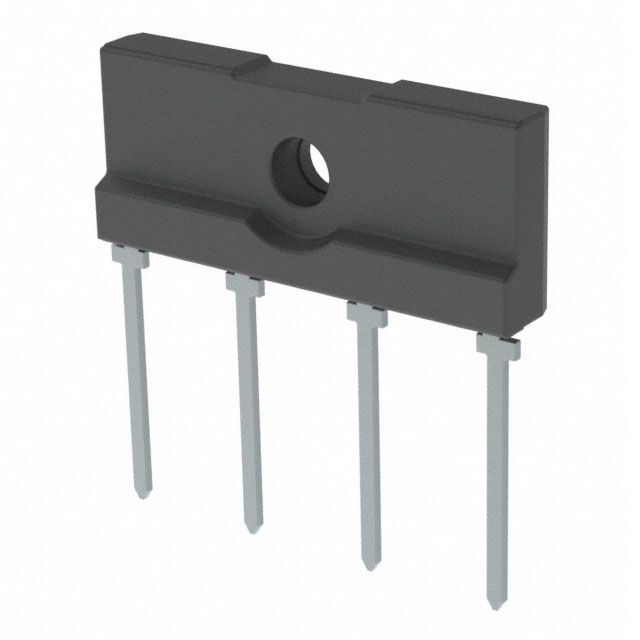

| Package / Case | 4-SIP, KBJL |
| Qualification | AEC-Q101 |
| Supplier Device Package | KBJL |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) @ If | 1 V |
| Voltage - Peak Reverse (Max) [Max] | 800 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.70 | |
| 10 | $ 1.08 | |||
| 100 | $ 0.72 | |||
| 500 | $ 0.57 | |||
| 1000 | $ 0.52 | |||
| 2000 | $ 0.48 | |||
| 6000 | $ 0.43 | |||
| 10000 | $ 0.42 | |||
Description
General part information
TS10KL80 Series
Bridge Rectifier Single Phase Standard 800 V Through Hole KBJL
