Q-2M03T000R002M

Active

Amphenol Custom Cable

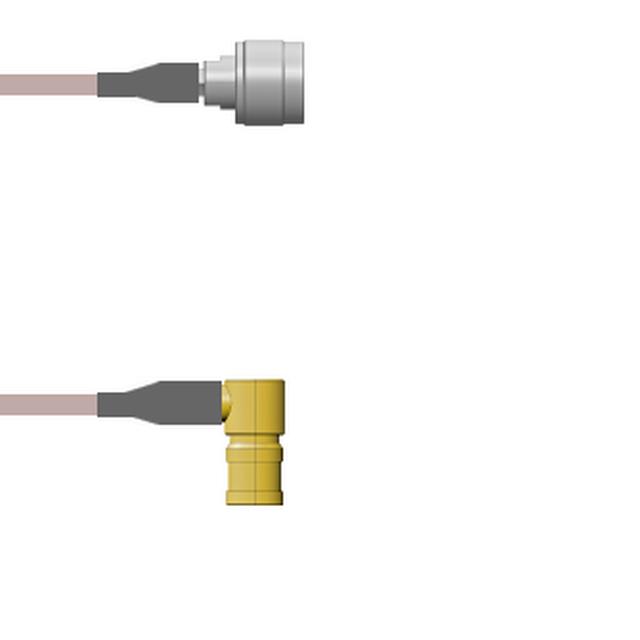

CBL ASSY SMB-NTYPE PLUG-PLG 6.6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2M03T000R002M

Active

Amphenol Custom Cable

CBL ASSY SMB-NTYPE PLUG-PLG 6.6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2M03T000R002M

1st Connector	Right Angle, SMB Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	6.6 ft
Length	78.7 in
Length	2 m
Overall Impedance	50 Ohms
Style	SMB to N-Type

Q-2M03T0 Series

Part	Length	Length	Length	Features	Overall Impedance	2nd Contact Gender	2nd Connector	2nd Connector Mounting Type	Frequency - Max [Max]	Style	Color	1st Contact Gender	Cable Type	1st Connector	1st Connector Mounting Type	Length [x]	Length [x]
Amphenol Custom Cable Q-2M03T000R003M	3 m	118.1 in	9.8 '	Shielded	50 Ohms	Male	N-Type Plug	Free Hanging (In-Line)	4 GHz	SMB to N-Type	Copper	Female	RG-316 DB	Right Angle SMB Plug	Free Hanging (In-Line)
Amphenol Custom Cable Q-2M03T000R001M	1 m	39.4 in	3.3 ft	Shielded	50 Ohms	Male	N-Type Plug	Free Hanging (In-Line)	4 GHz	SMB to N-Type	Copper	Female	RG-316 DB	Right Angle SMB Plug	Free Hanging (In-Line)
Amphenol Custom Cable Q-2M03T000R0.5M	50 cm	19.69 "		Shielded	50 Ohms	Male	N-Type Plug	Free Hanging (In-Line)	4 GHz	SMB to N-Type	Copper	Female	RG-316 DB	Right Angle SMB Plug	Free Hanging (In-Line)
Amphenol Custom Cable Q-2M03T000R2.5M	2.5 m	98.4 in	8.2 '	Shielded	50 Ohms	Male	N-Type Plug	Free Hanging (In-Line)	4 GHz	SMB to N-Type	Copper	Female	RG-316 DB	Right Angle SMB Plug	Free Hanging (In-Line)
Amphenol Custom Cable Q-2M03T000R024i	609.6 mm	24 "		Shielded	50 Ohms	Male	N-Type Plug	Free Hanging (In-Line)	4 GHz	SMB to N-Type	Copper	Female	RG-316 DB	Right Angle SMB Plug	Free Hanging (In-Line)
Amphenol Custom Cable Q-2M03T000R002M	2 m	78.7 in	6.6 ft	Shielded	50 Ohms	Male	N-Type Plug	Free Hanging (In-Line)	4 GHz	SMB to N-Type	Copper	Female	RG-316 DB	Right Angle SMB Plug	Free Hanging (In-Line)
Amphenol Custom Cable Q-2M03T000R.25M				Shielded	50 Ohms	Male	N-Type Plug	Free Hanging (In-Line)	4 GHz	SMB to N-Type	Copper	Female	RG-316 DB	Right Angle SMB Plug	Free Hanging (In-Line)	9.843 "	250 mm
Amphenol Custom Cable Q-2M03T000R1.5M	1.5 m	59.1 in	4.9 ft	Shielded	50 Ohms	Male	N-Type Plug	Free Hanging (In-Line)	4 GHz	SMB to N-Type	Copper	Female	RG-316 DB	Right Angle SMB Plug	Free Hanging (In-Line)
Amphenol Custom Cable Q-2M03T000R003i	76.2 mm	3 in		Shielded	50 Ohms	Male	N-Type Plug	Free Hanging (In-Line)	4 GHz	SMB to N-Type	Copper	Female	RG-316 DB	Right Angle SMB Plug	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 274.16
		25	$ 255.20
		50	$ 236.24
		100	$ 219.99
		250	$ 206.44

Description

General part information

Q-2M03T0 Series

Cable Assembly Coaxial SMB to N-Type RG-316 DB 78.7" (2.0m) 6.6'

Documents

Technical documentation and resources

No documents available
