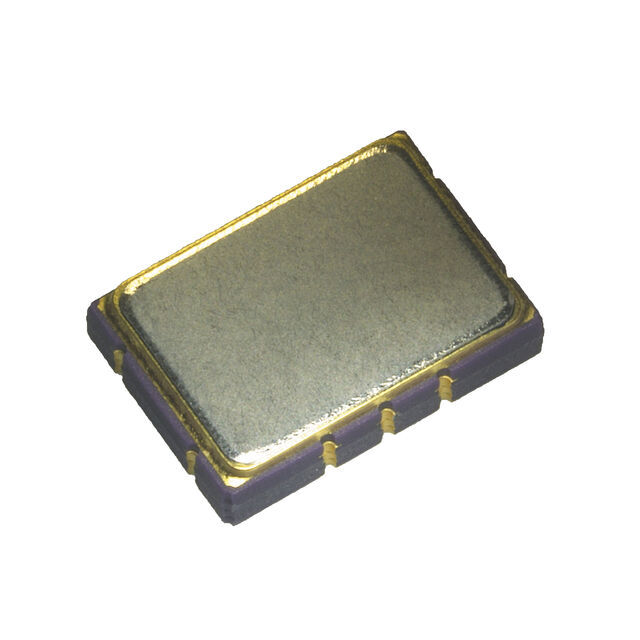

TG-5510CA-81N 19.2000M0

Active

EPSON

TG-5510CA-81N 19.2000M0: TCXO MH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TG-5510CA-81N 19.2000M0

Active

EPSON

TG-5510CA-81N 19.2000M0: TCXO MH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TG-5510CA-81N 19.2000M0	TG-5510CA Series

Base Resonator	Crystal	Crystal
Current - Supply (Max) [Max]	7 mA	7 - 10 mA
Frequency	19.2 MHz	10 - 50 MHz
Frequency Stability	28 ppm	28 ppm
Function	Enable/Disable	Enable/Disable
Height - Seated (Max) [Max]	0.067 in	0.067 in
Height - Seated (Max) [Max]	1.7 mm	1.7 mm
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output	CMOS	CMOS
Package / Case	10-SMD, No Lead	10-SMD, No Lead
Size / Dimension [x]	7 mm	7 mm
Size / Dimension [x]	0.276 "	0.276 "
Size / Dimension [y]	5 mm	5 mm
Size / Dimension [y]	0.197 "	0.197 "
Supplier Device Package	10-SMD (7x5)	10-SMD (7x5)
Type	TCXO	TCXO
Voltage - Supply	3.3 V	3.3 V

TG-5510CA Series

TG-5510CA-96N 38.8800M0: TCXO MH

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Frequency	Type	Output	Base Resonator	Voltage - Supply	Current - Supply (Max) [Max]	Frequency Stability	Function	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Mounting Type	Supplier Device Package
EPSON TG-5510CA-96N 38.8800M0	7 mm	5 mm	0.276 "	0.197 "	38.88 MHz	TCXO	CMOS	Crystal	3.3 V	9 mA	28 ppm	Enable/Disable	85 °C	-40 °C	0.067 in	1.7 mm	10-SMD, No Lead	Surface Mount
EPSON TG-5510CA-92N 25.6000M0	7 mm	5 mm	0.276 "	0.197 "	25.6 MHz	TCXO	CMOS	Crystal	3.3 V	7 mA	28 ppm	Enable/Disable	85 °C	-40 °C	0.067 in	1.7 mm	10-SMD, No Lead	Surface Mount
EPSON TG-5510CA-95N 20.0000M0	7 mm	5 mm	0.276 "	0.197 "	20 MHz	TCXO	CMOS	Crystal	3.3 V	7 mA	28 ppm	Enable/Disable	85 °C	-40 °C	0.067 in	1.7 mm	10-SMD, No Lead	Surface Mount
EPSON TG-5510CA-98N 10.0000M0	7 mm	5 mm	0.276 "	0.197 "	10 MHz	TCXO	CMOS	Crystal	3.3 V	7 mA	28 ppm	Enable/Disable	85 °C	-40 °C	0.067 in	1.7 mm	10-SMD, No Lead	Surface Mount
EPSON TG-5510CA-09N 20.0000M0	7 mm	5 mm	0.276 "	0.197 "	20 MHz	TCXO	CMOS	Crystal	3.3 V	7 mA	28 ppm	Enable/Disable	85 °C	-40 °C	0.067 in	1.7 mm	10-SMD, No Lead	Surface Mount
EPSON TG-5510CA-78N 49.1520M0	7 mm	5 mm	0.276 "	0.197 "	49.152 MHz	TCXO	CMOS	Crystal	3.3 V	10 mA	28 ppm	Enable/Disable	85 °C	-40 °C	0.067 in	1.7 mm	10-SMD, No Lead	Surface Mount
EPSON TG-5510CA-77N 24.5760M0	7 mm	5 mm	0.276 "	0.197 "	24.576 MHz	TCXO	CMOS	Crystal	3.3 V	7 mA	28 ppm	Enable/Disable	85 °C	-40 °C	0.067 in	1.7 mm	10-SMD, No Lead	Surface Mount
EPSON TG-5510CA-91N 19.4400M0	7 mm	5 mm	0.276 "	0.197 "	19.44 MHz	TCXO	CMOS	Crystal	3.3 V	7 mA	28 ppm	Enable/Disable	85 °C	-40 °C	0.067 in	1.7 mm	10-SMD, No Lead	Surface Mount
EPSON TG-5510CA-81N 19.2000M0	7 mm	5 mm	0.276 "	0.197 "	19.2 MHz	TCXO	CMOS	Crystal	3.3 V	7 mA	28 ppm	Enable/Disable	85 °C	-40 °C	0.067 in	1.7 mm	10-SMD, No Lead	Surface Mount	10-SMD (7x5)
EPSON TG-5510CA-93N 40.0000M0	7 mm	5 mm	0.276 "	0.197 "	40 MHz	TCXO	CMOS	Crystal	3.3 V	9 mA	28 ppm	Enable/Disable	85 °C	-40 °C	0.067 in	1.7 mm	10-SMD, No Lead	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 8.33

Description

General part information

TG-5510CA Series

19.2 MHz TCXO CMOS Oscillator 3.3V Enable/Disable 10-SMD, No Lead
