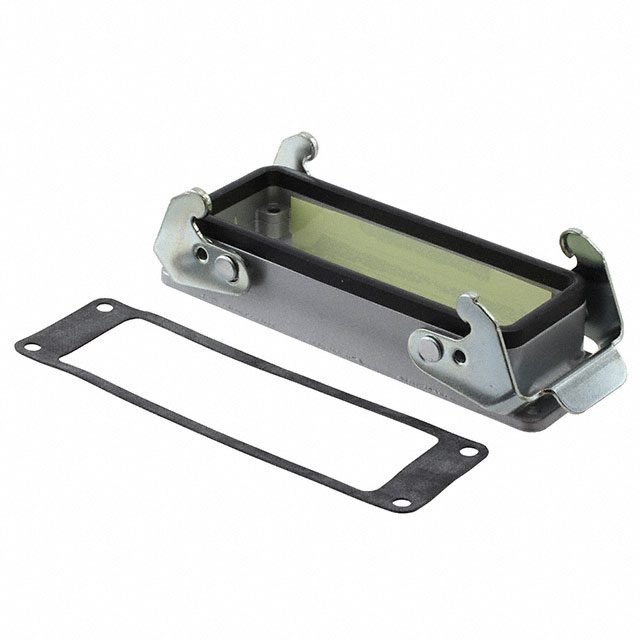

C14610F0240003

Active

Amphenol Tuchel Industrial

CONN BASE BOTTOM ENTRY SZE16

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN BASE BOTTOM ENTRY SZE16

Technical Specifications

Parameters and characteristics for this part

Specification	C14610F0240003

Connector Type	Base - Panel Mount
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	E16
Size / Dimension [x]	5.512 "
Size / Dimension [x]	140 mm
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	1.122 in
Size / Dimension [z]	28.5 mm
Style	Bottom Entry

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Style	Housing Material	Ingress Protection	Size	Connector Type	Lock Location	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol Tuchel Industrial C14610F0240003	5.512 "	140 mm	1.122 in	43 mm	28.5 mm	1.693 in	Bottom Entry	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	E16	Base - Panel Mount	Locking Clip (2) on Base Bottom	100 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 27.39

General part information

Base - Panel Mount Connector Bottom Entry E16 IP65 - Dust Tight, Water Resistant
