TL-SPL1R6-9W-5CCT

Active

TECHNO LED LIGHTS

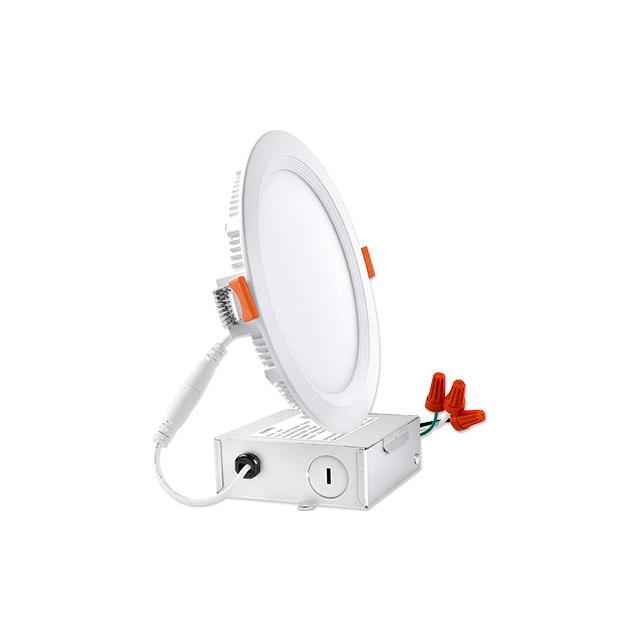

TECHNO LED 6 INCH ULTRA-THIN LED

Search across all available documentation for this part.

Active

TECHNO LED LIGHTS

TECHNO LED 6 INCH ULTRA-THIN LED

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TL-SPL1R6-9W-5CCT	TL-SPL1R Series

CCT (K)	-	2700 - 5000 K
Color	-	White, Neutral, White, Cool, White, Warm
Configuration	-	Plug and Play, Round
CRI (Color Rendering Index)	-	80
Current - Test	-	90 mA
Height	-	23.88 mm
Lens Type	-	Flat
Lumens/Watt @ Current - Test	-	102 lm/W
Luminous Flux @ Current/Temperature	-	1100 lm
Size / Dimension	-	172.97 mm
Type	LED Module	LED Module
Viewing Angle	-	110 °
Voltage - Forward (Vf) (Typ)	-	120 V

TECHNO LED 6 INCH ULTRA-THIN LED

Part	Type	Height [z]	Color	Viewing Angle	Size / Dimension [diameter]	Lens Type	Configuration	Lumens/Watt @ Current - Test	Current - Test	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	CCT (K)	CRI (Color Rendering Index)
TECHNO LED LIGHTS TL-SPL1R6-9W-5CCT	LED Module
TECHNO LED LIGHTS TL-SPL1R6-12W-5CCT	LED Module	23.88 mm	White, Cool, White, Neutral, White, Warm	110 °	172.97 mm	Flat	Plug and Play, Round	102 lm/W	90 mA	120 V	1100 lm	2700 K, 3000 K, 3500 K, 4000 K, 5000 K	80

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 134.90

General part information

LED Lighting COBs Engines Modules LED Module -
